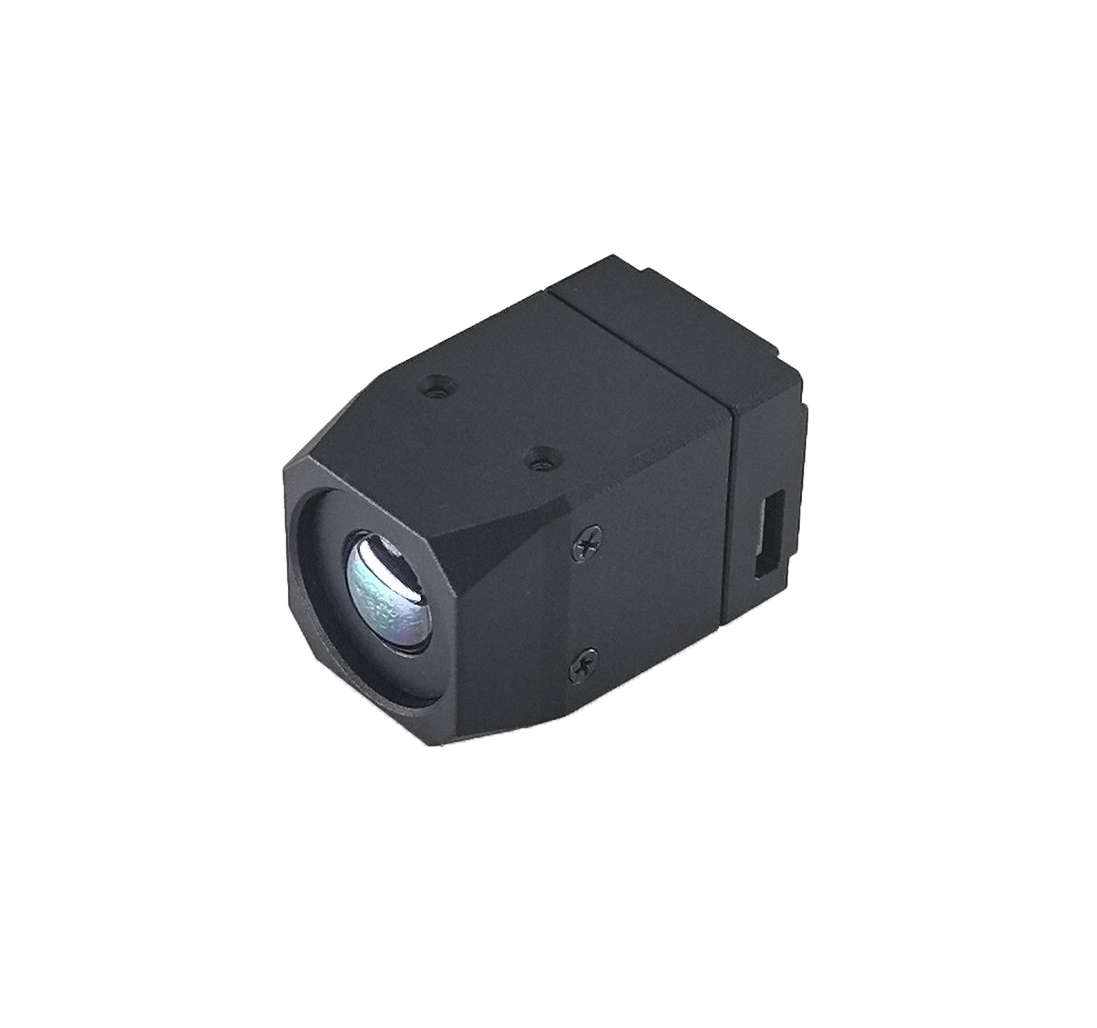

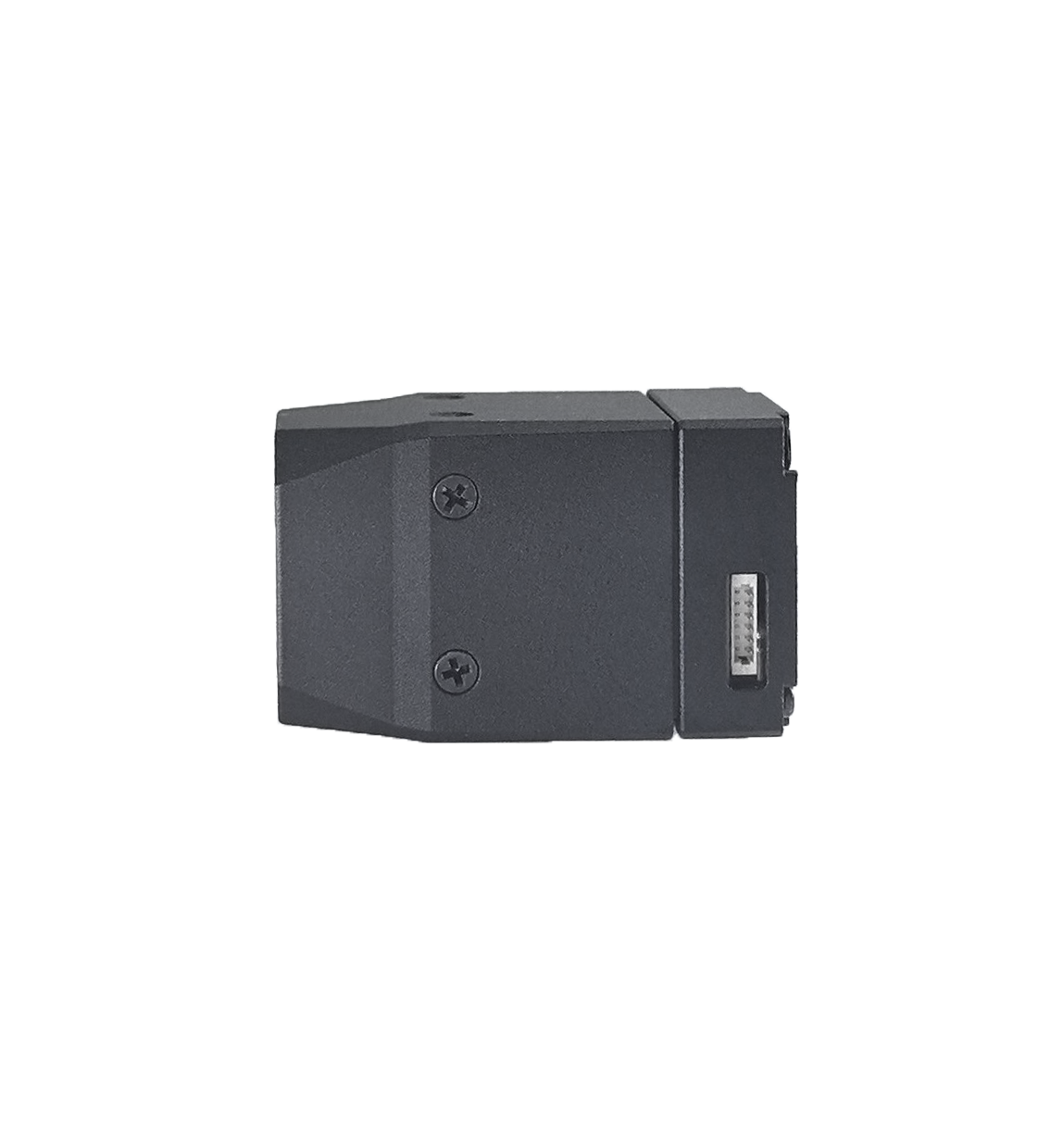

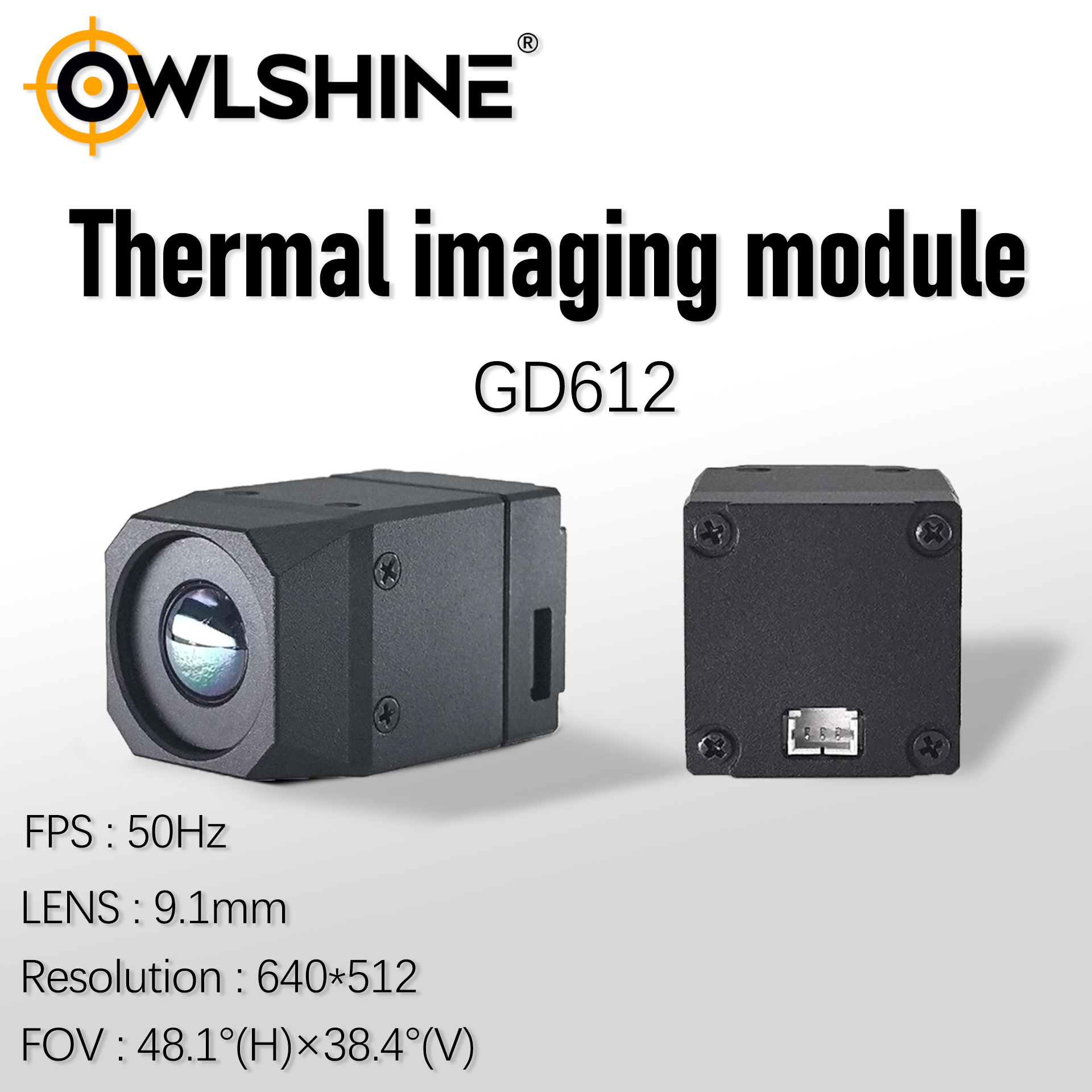

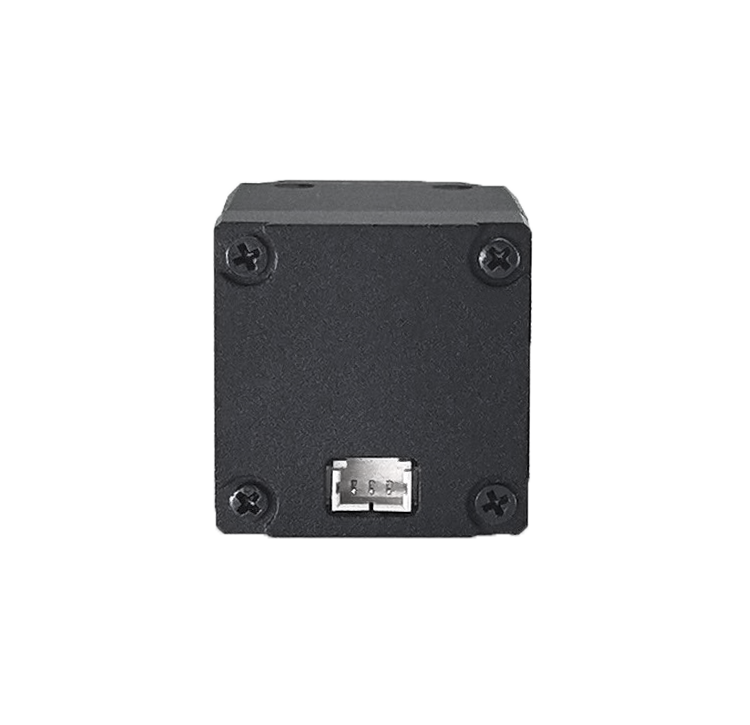

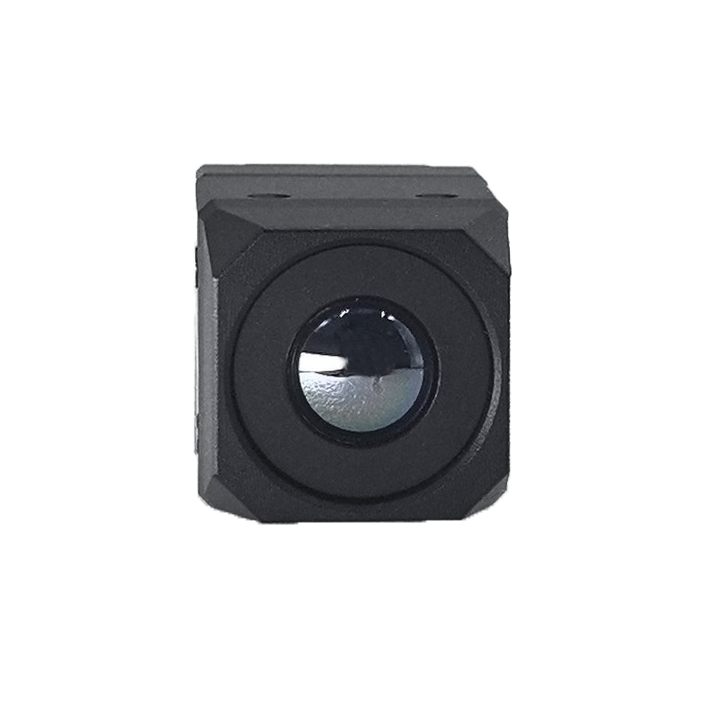

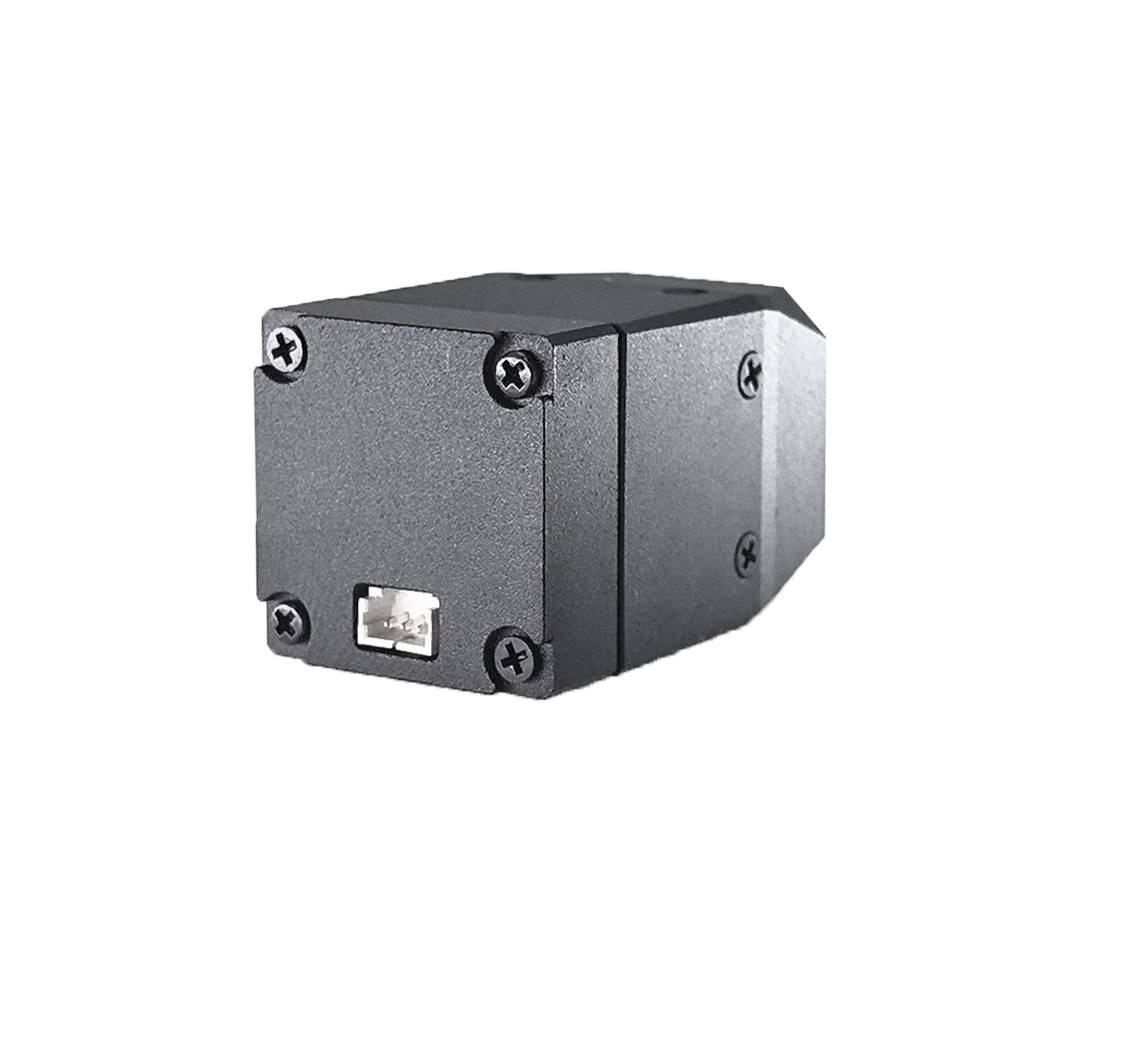

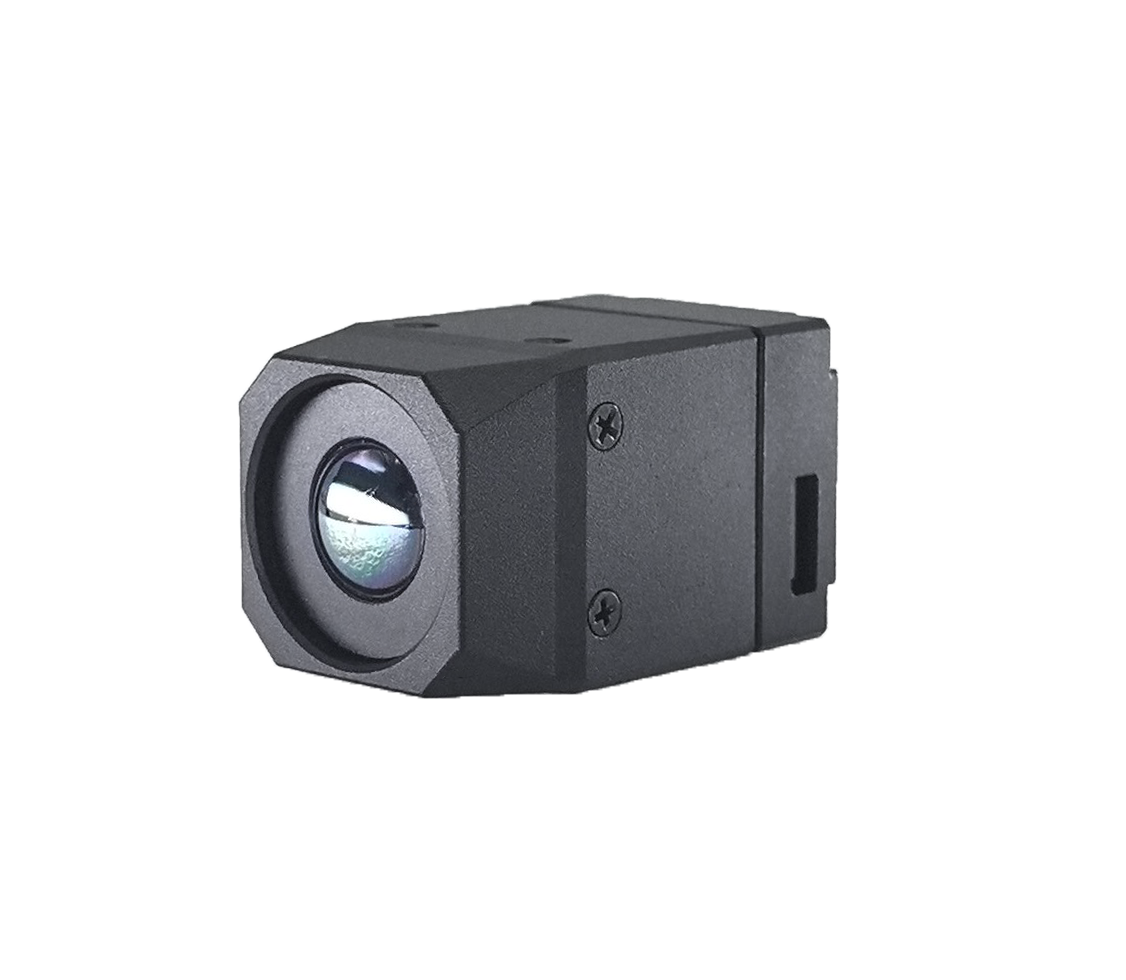

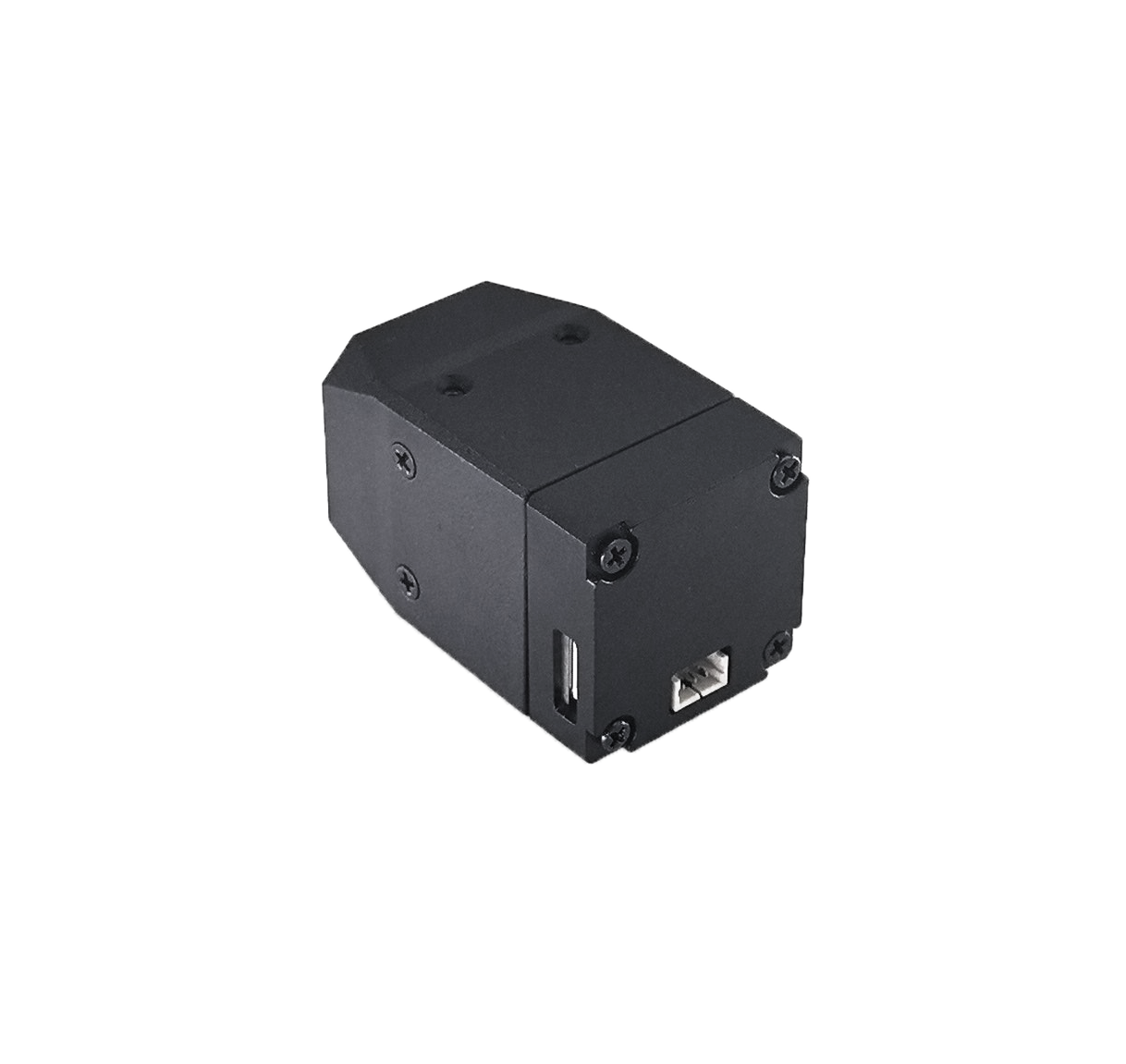

GD612 Thermal Imaging Module
Ultra-Compact | Low SWaP | Multi-Interface | Versatile Lenses
The GD612 is a high-performance uncooled thermal imaging module designed for applications sensitive to Size, Weight, and Power (SWaP). It delivers crisp thermal imagery in complete darkness, fog, or low-light environments, ideal for UAVs, handheld devices, and embedded systems.
Key Features
- High Resolution: 640×512 VOx uncooled IRFPA detector

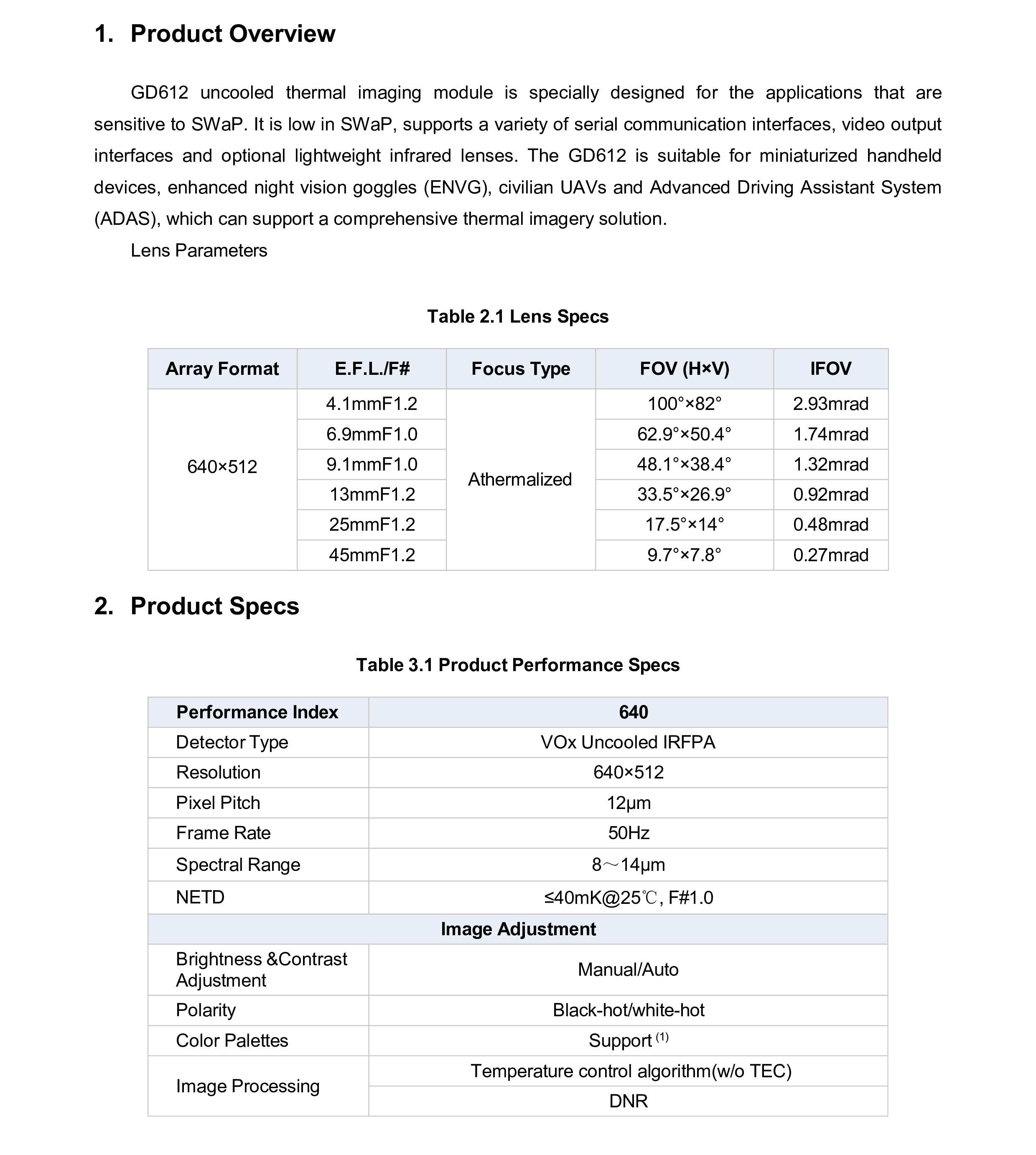

- Multiple Lens Options: 4.1mm/6.9mm/9.1mm/13mm/25mm/45mm athermalized lenses
- 50Hz Frame Rate: Smooth real-time thermal video
- High Sensitivity: NETD ≤40mK for detecting subtle temperature differences

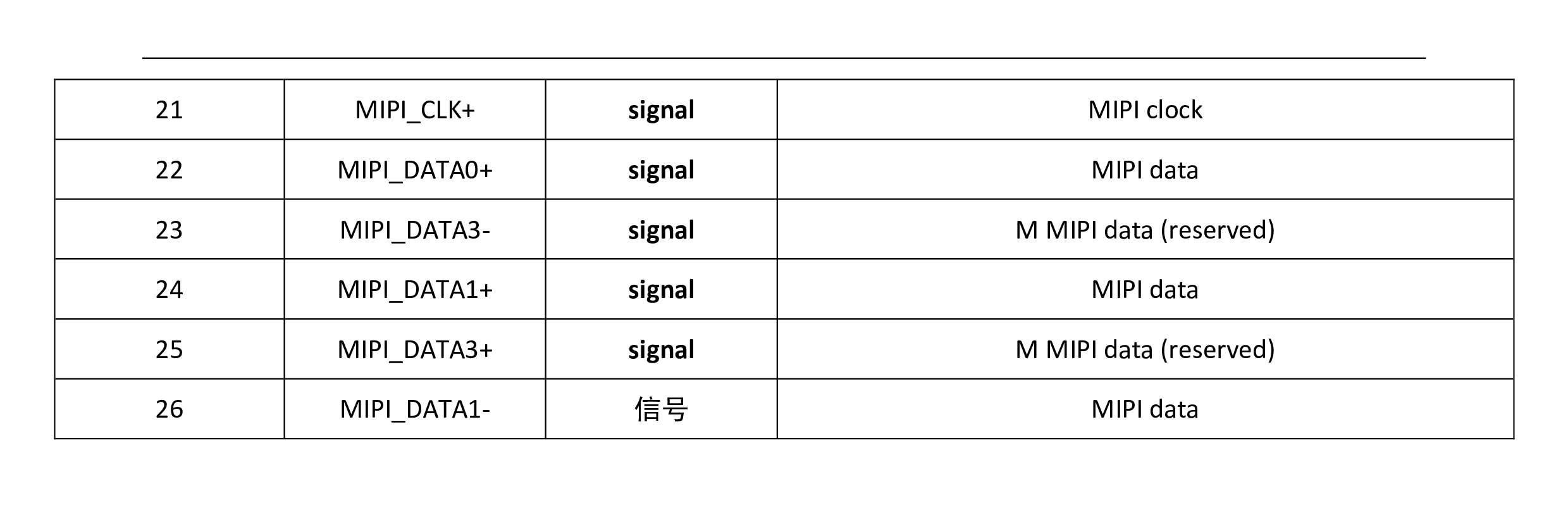

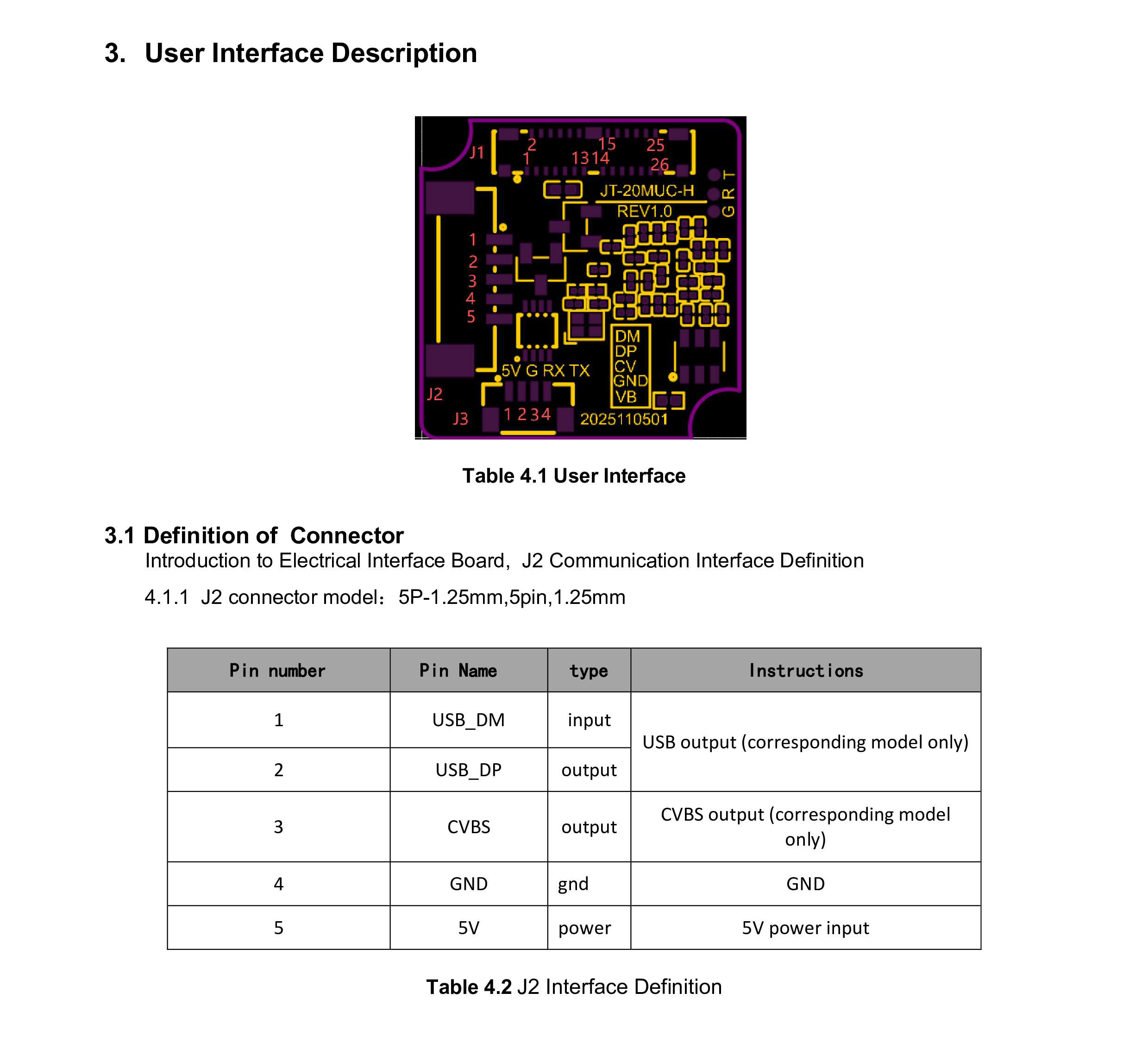

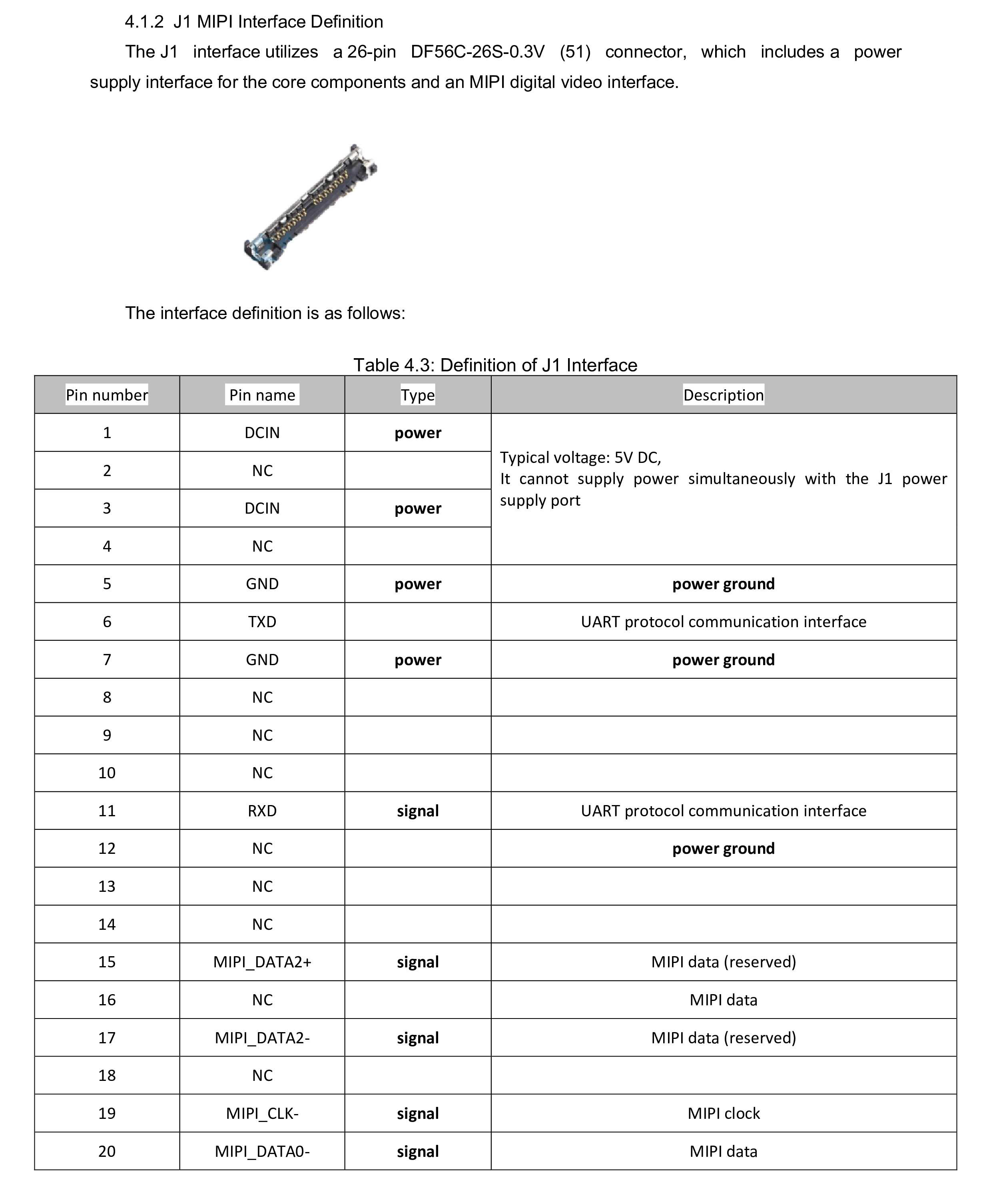

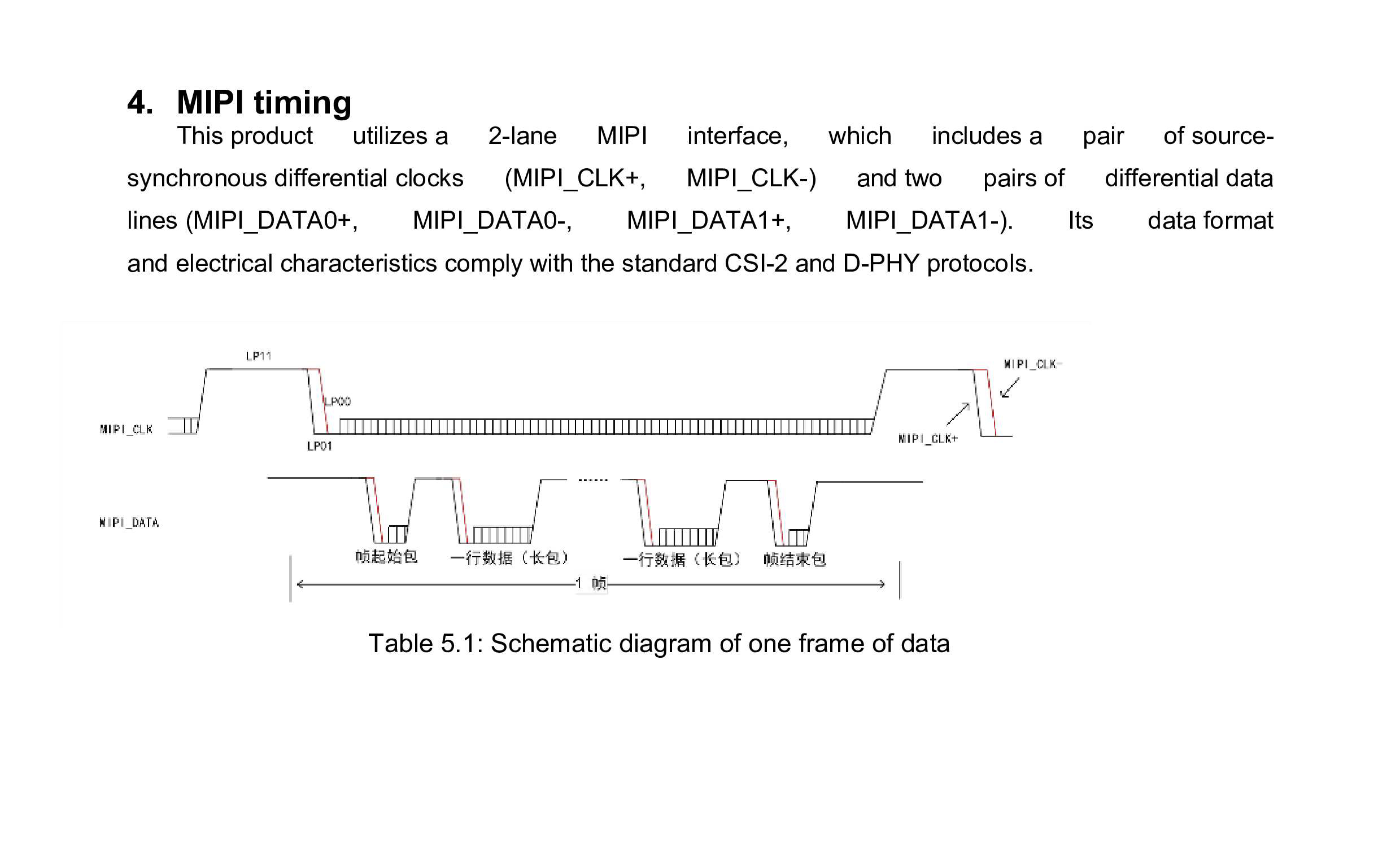

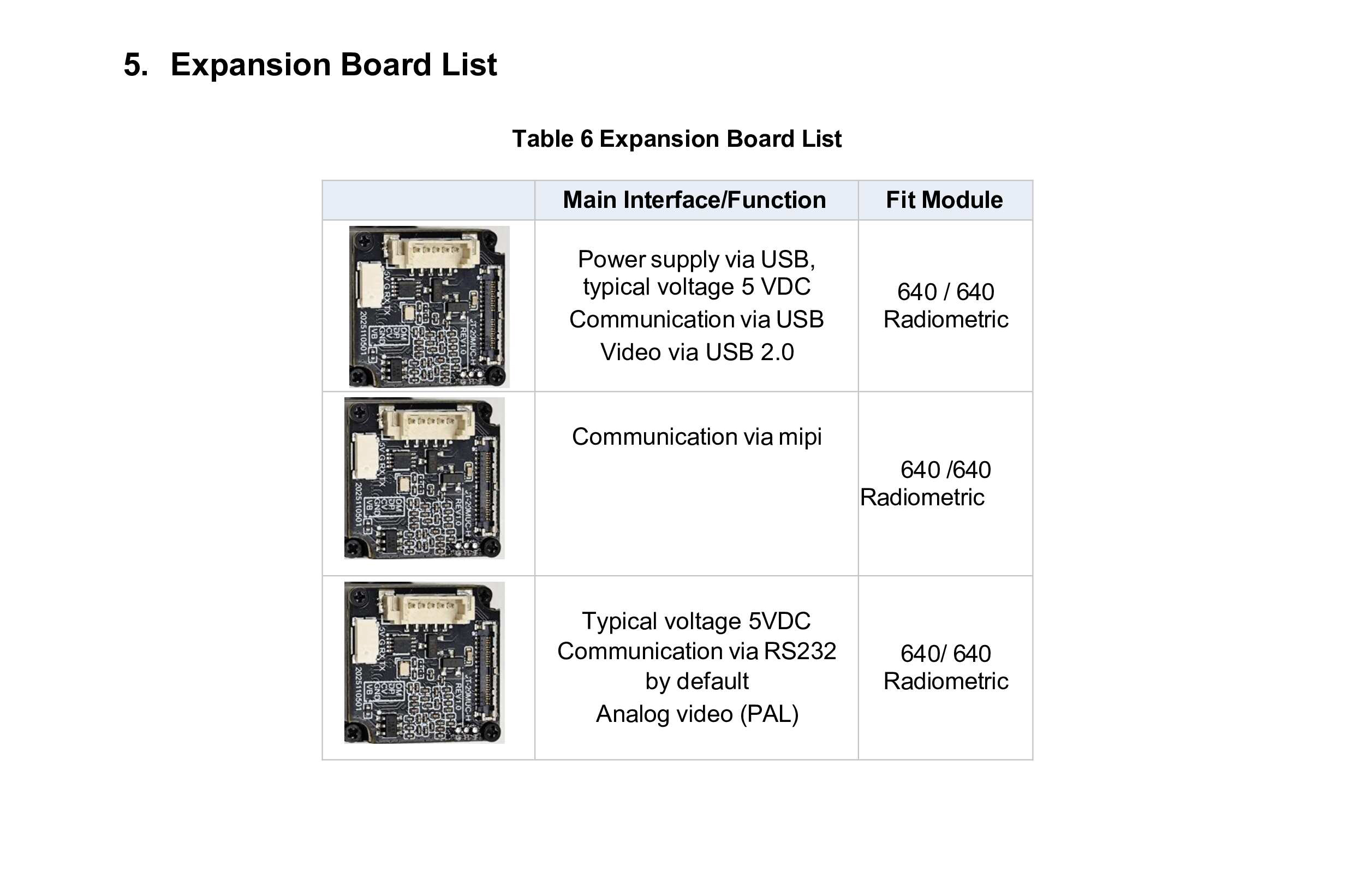

- Multi-Interface Support: MIPI, USB, CVBS, and UART serial communication

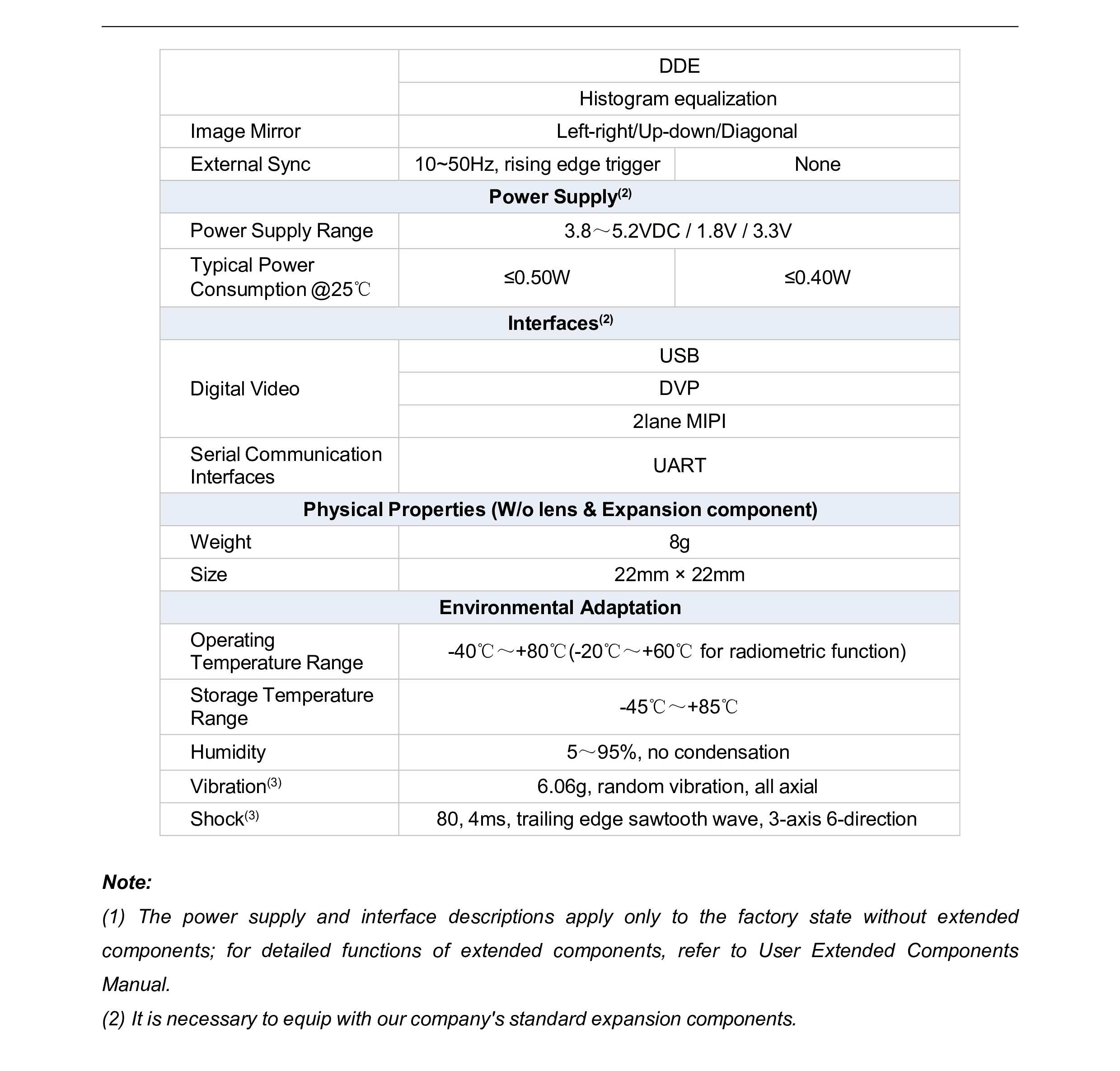

- Ultra-Low Power: ≤0.50W consumption at 25℃

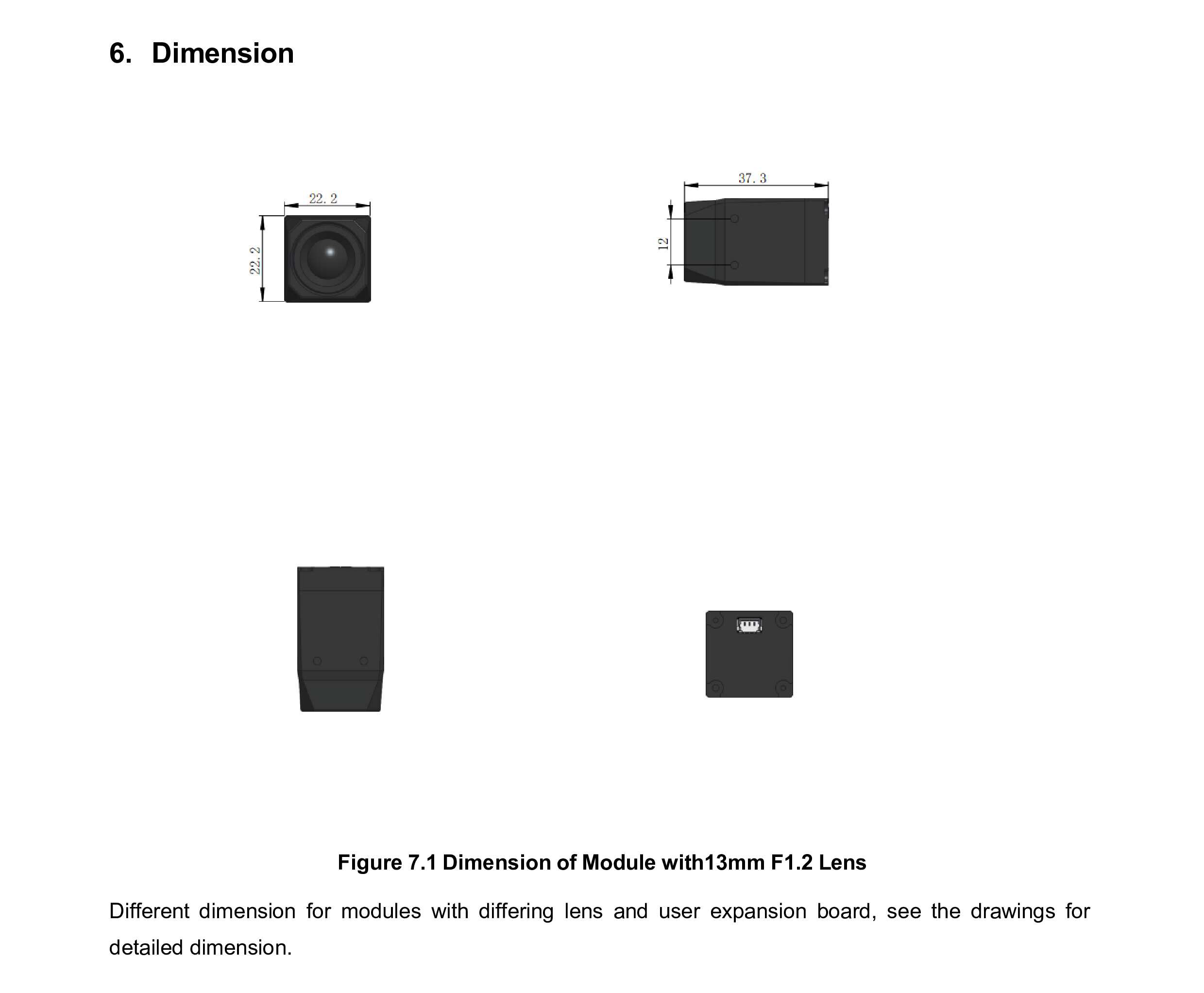

- Ultra-Compact Design: 22×22mm size, only 8g weight
- Wide Operating Range: -40℃ to +80℃
Ideal Applications
- Civilian UAV payloads
- Miniaturized handheld thermal devices
- Night vision goggles (ENVG)
- Advanced Driver Assistance Systems (ADAS)
- Low-power embedded thermal systems
Why Choose GD612
Ultra-compact, lightweight, and low-power, the GD612 delivers professional 640×512 thermal imaging with flexible lenses and multi-interface support. It’s the ideal choice for high-performance, space‑constrained designs.
