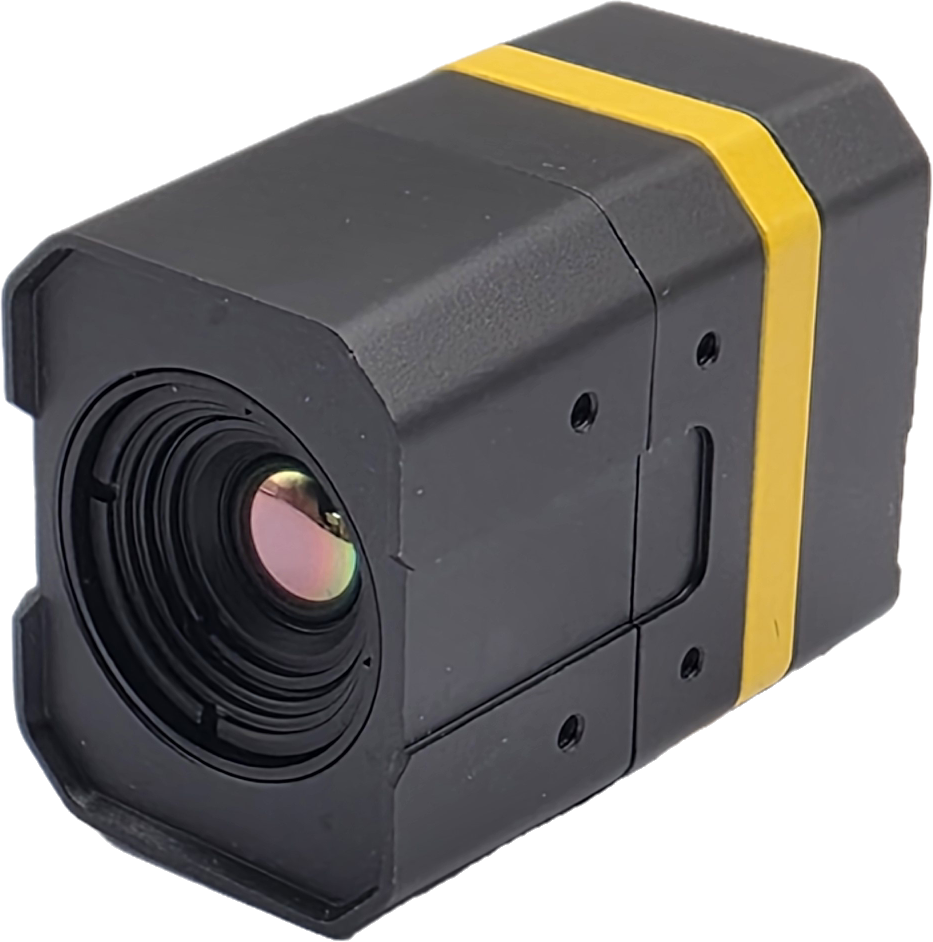

IR-009CA Thermal Imaging Module
High Resolution | Compact Size | Low Power | Easy Integration

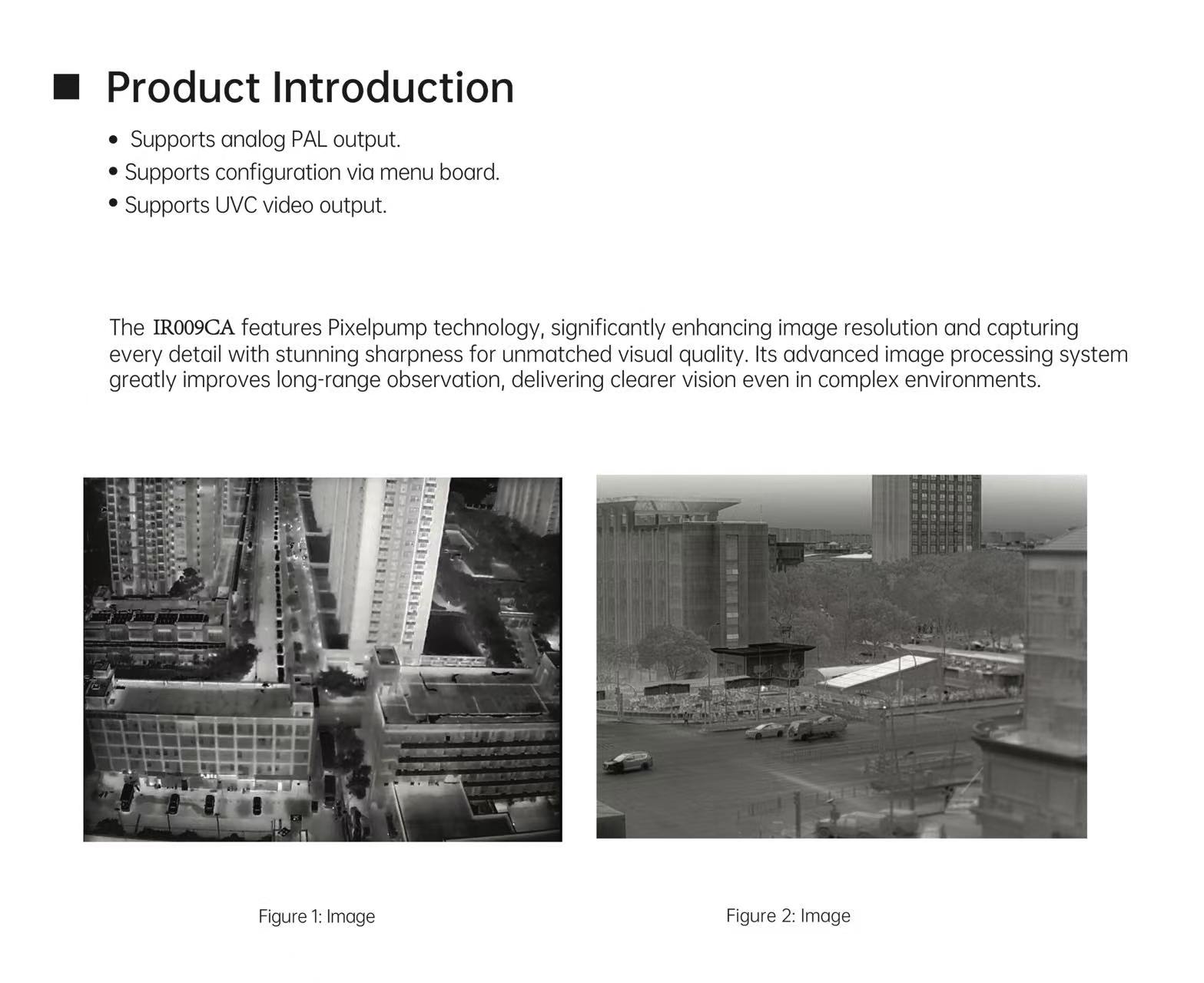

The IR009CA features Pixelpump technology for enhanced image detail, delivering clear thermal vision even in complex environments, perfect for professional monitoring and long-range observation.

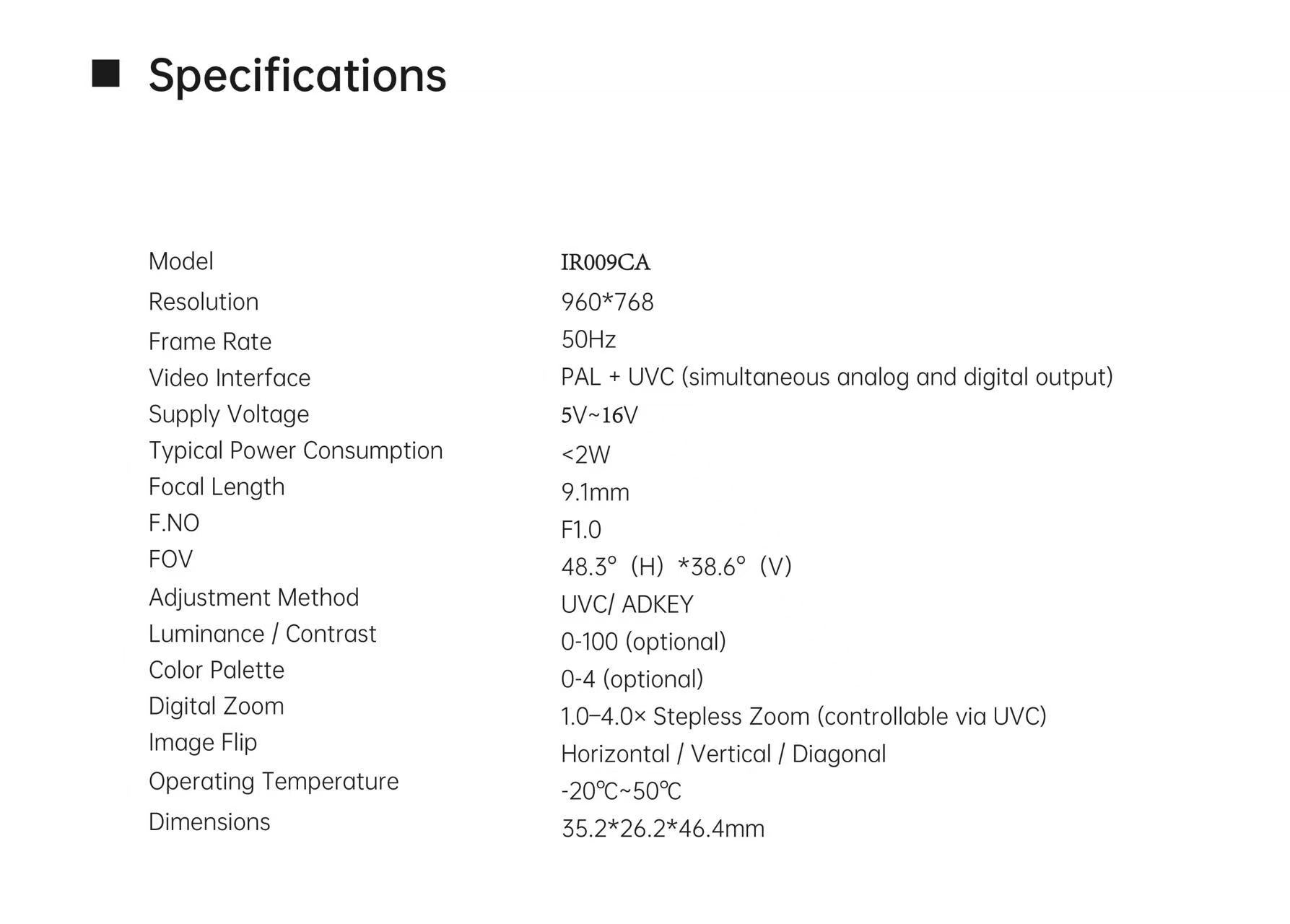

Key Features
- 960×768 Resolution: Enhanced clarity via Pixelpump technology
- 9.1mm F1.0 Lens: 48.3°×38.6° FOV for wide, long-range detection
- 50Hz Frame Rate: Smooth real-time thermal video

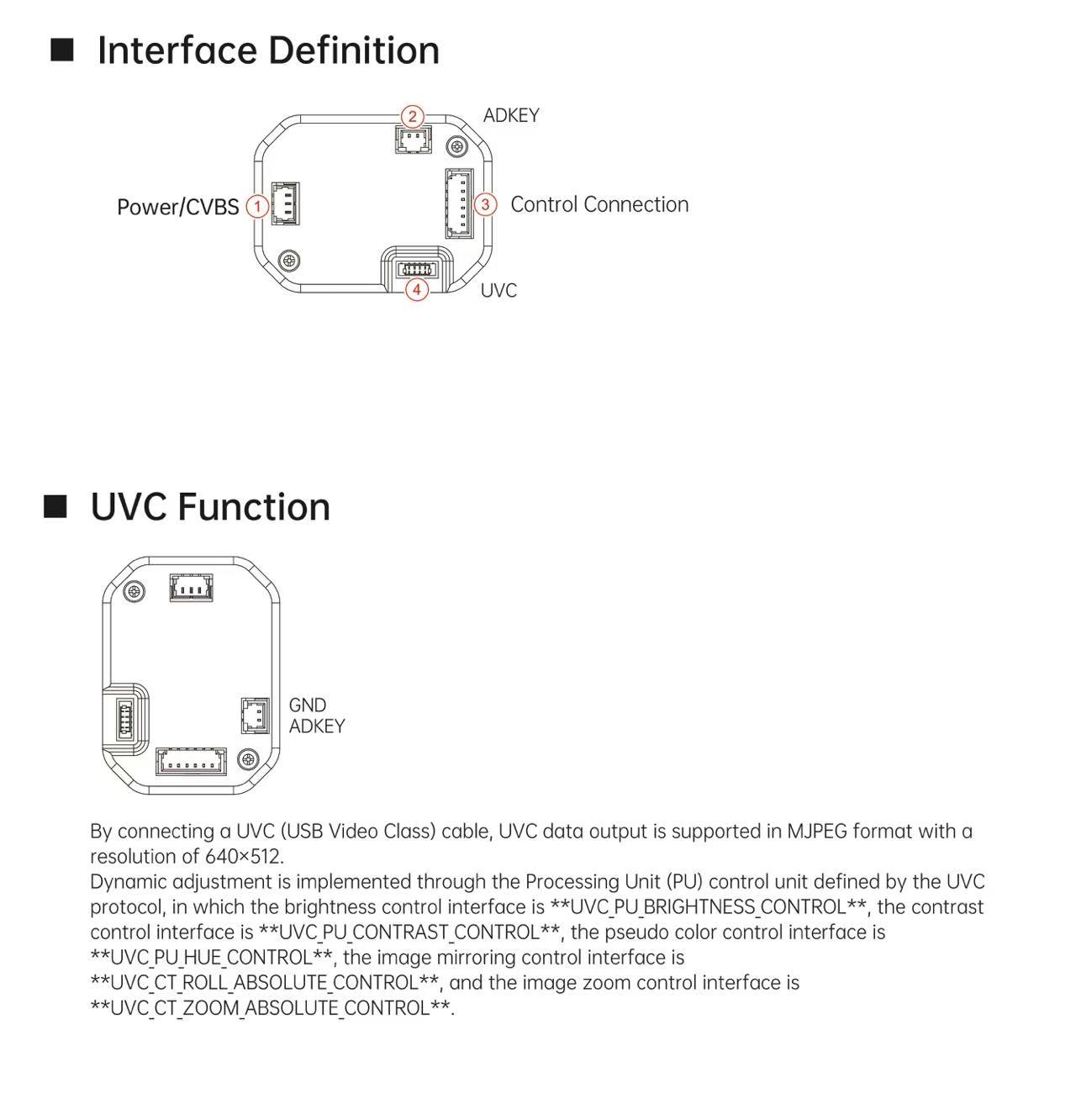

- Dual PAL+UVC Output: Simultaneous analog & digital video
- Flexible Control: UVC/ADKEY adjustment for brightness, zoom & flip
- Low Power: <2W consumption, 5V~16V wide voltage input

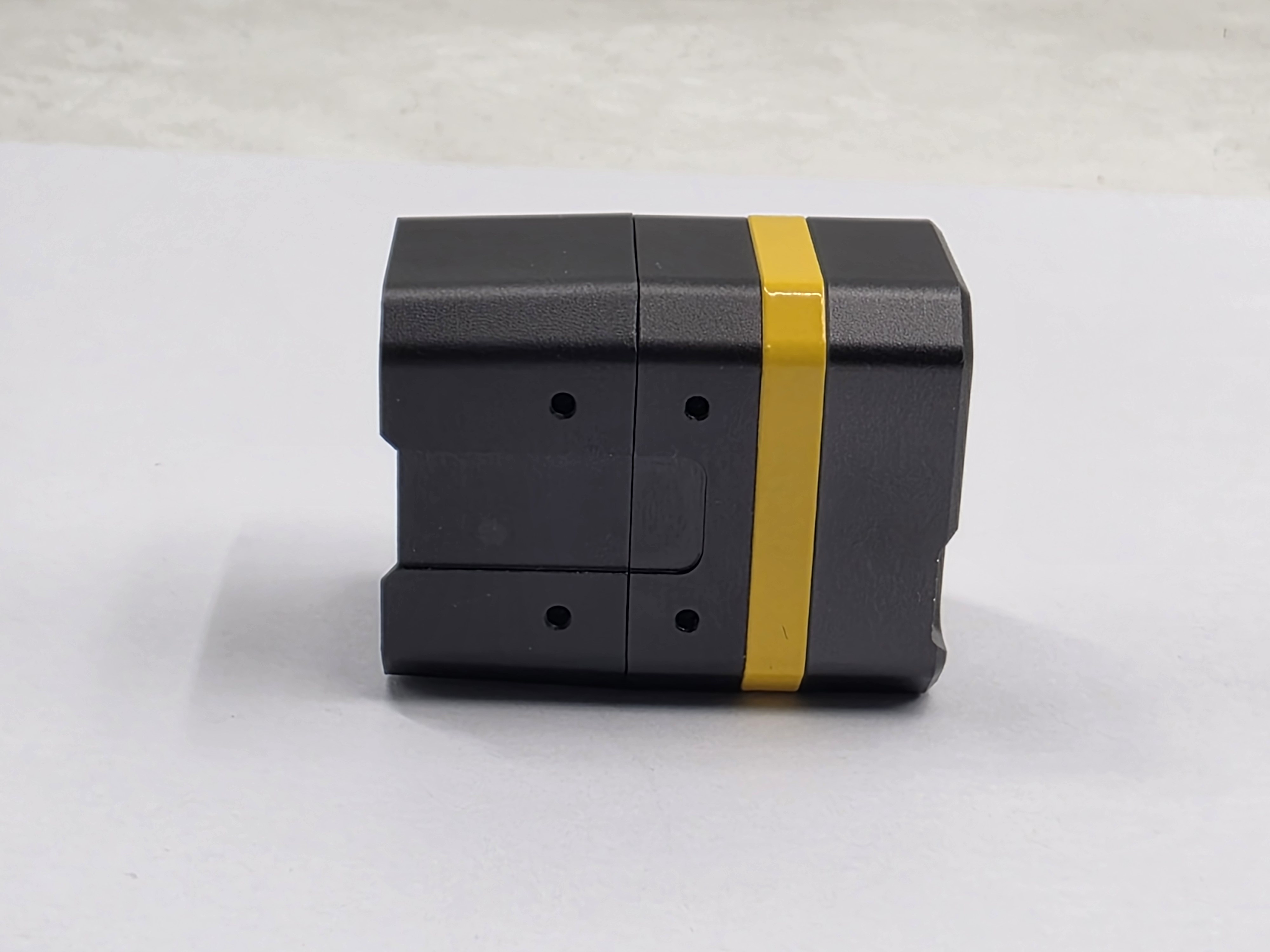

- Compact Design: 35.2×26.2×46.4mm, -20℃~50℃ operating range
Ideal Applications
- Perimeter security & long-range surveillance
- Industrial equipment temperature monitoring
- Vehicle night vision systems
- Fire detection & early warning
- Low-light outdoor observation
Why Choose IR-009CA
High-resolution thermal performance with dual output and flexible control, ideal for high-performance monitoring integrations.
