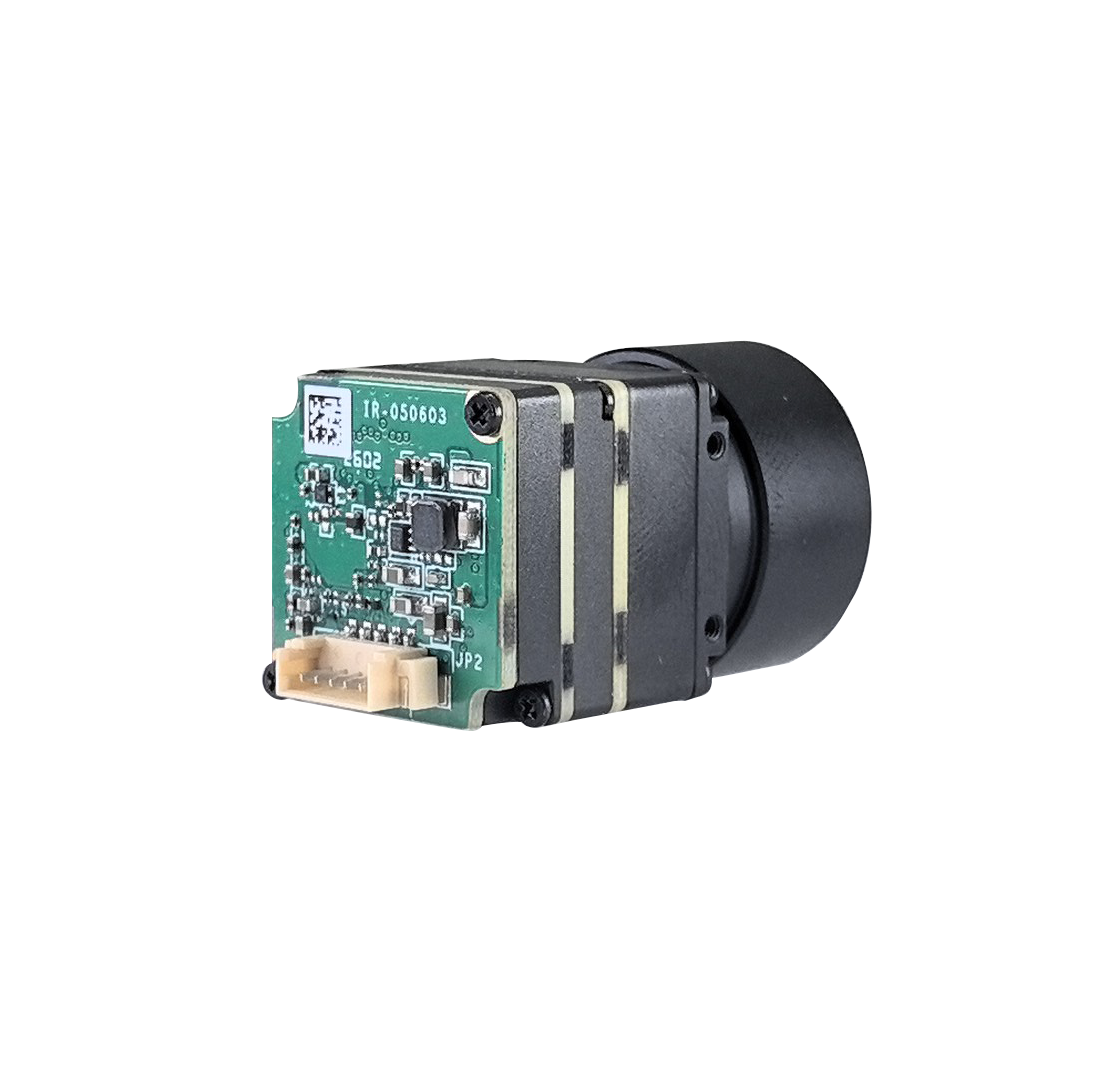

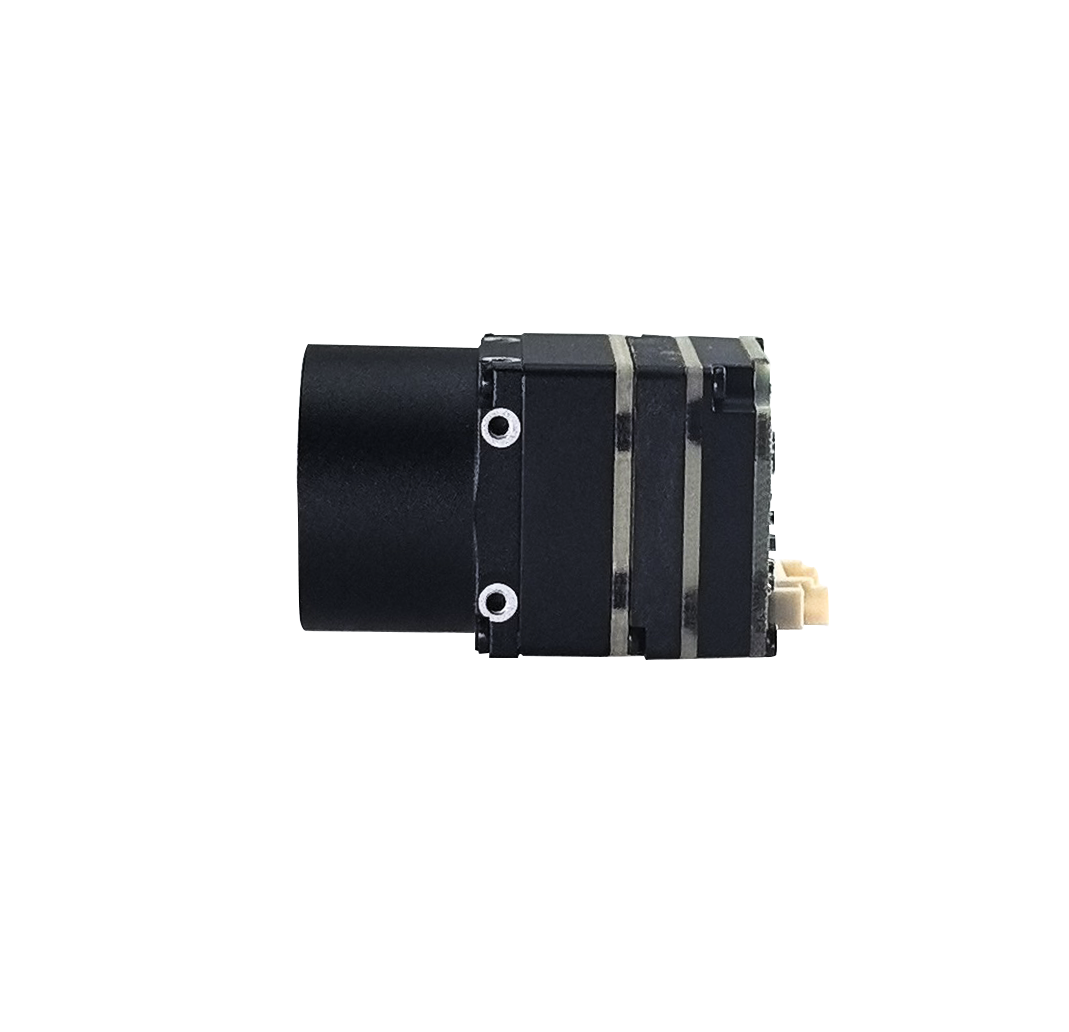

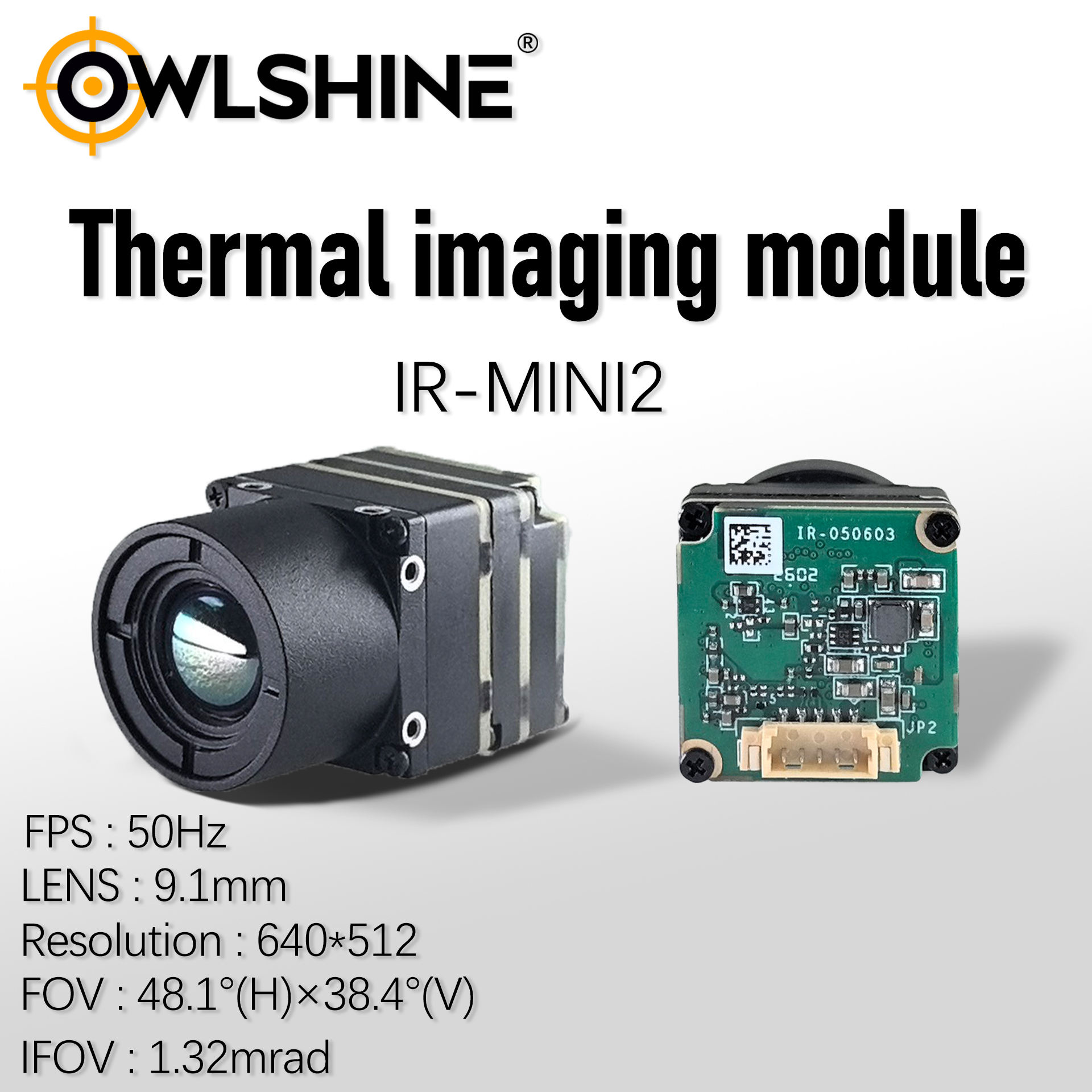

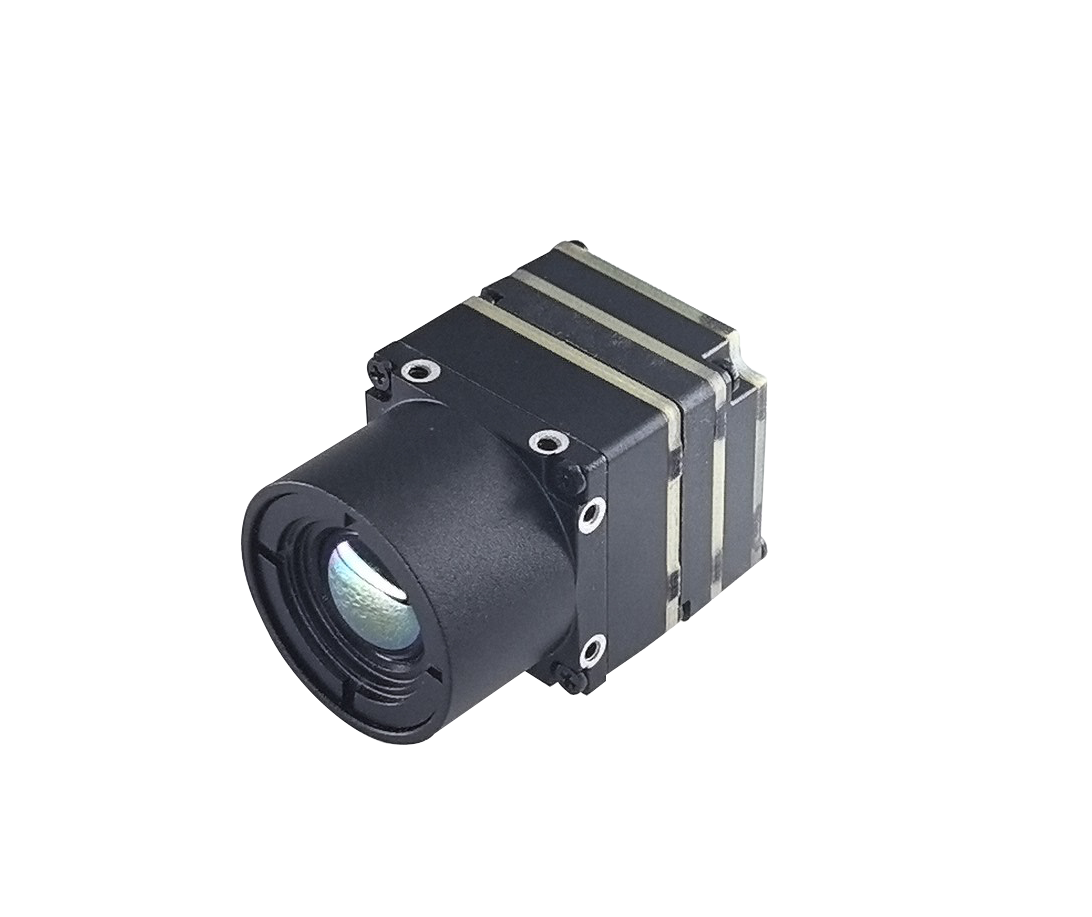

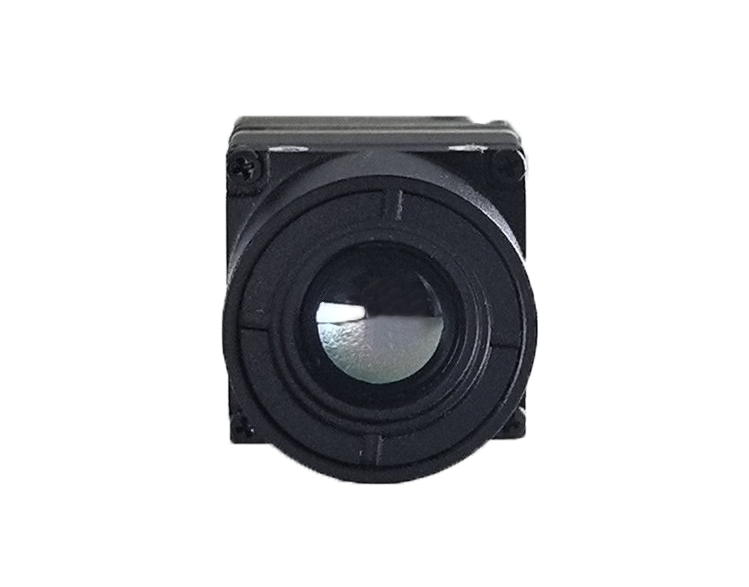

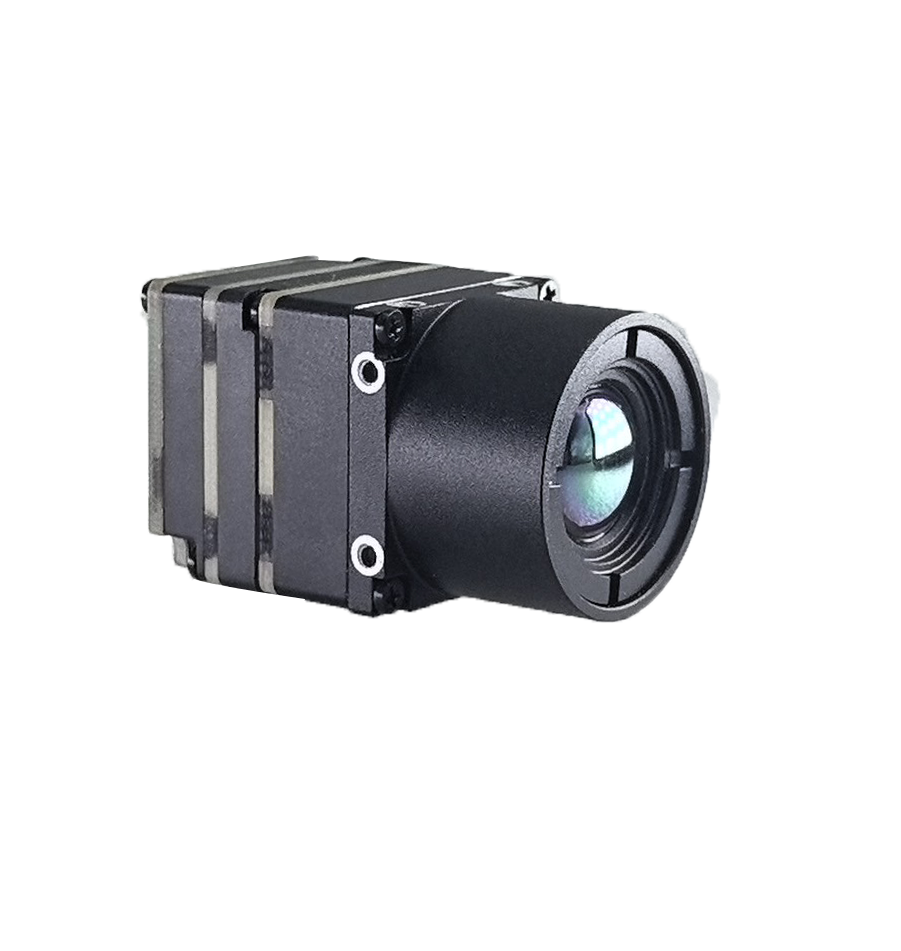

IR-MINI2 Thermal Imaging Module
Ultra-Compact | Low SWaP | Multi-Interface | Versatile Lenses
The IR-MINI2 is a high-performance uncooled thermal imaging module, purpose-built for applications sensitive to Size, Weight, and Power (SWaP). It delivers crisp thermal imagery in complete darkness, fog, or low-light environments, making it ideal for UAVs, handheld devices, night vision goggles, and ADAS systems.
Key Features
- High Resolution: 640×512 VOx uncooled IRFPA detector

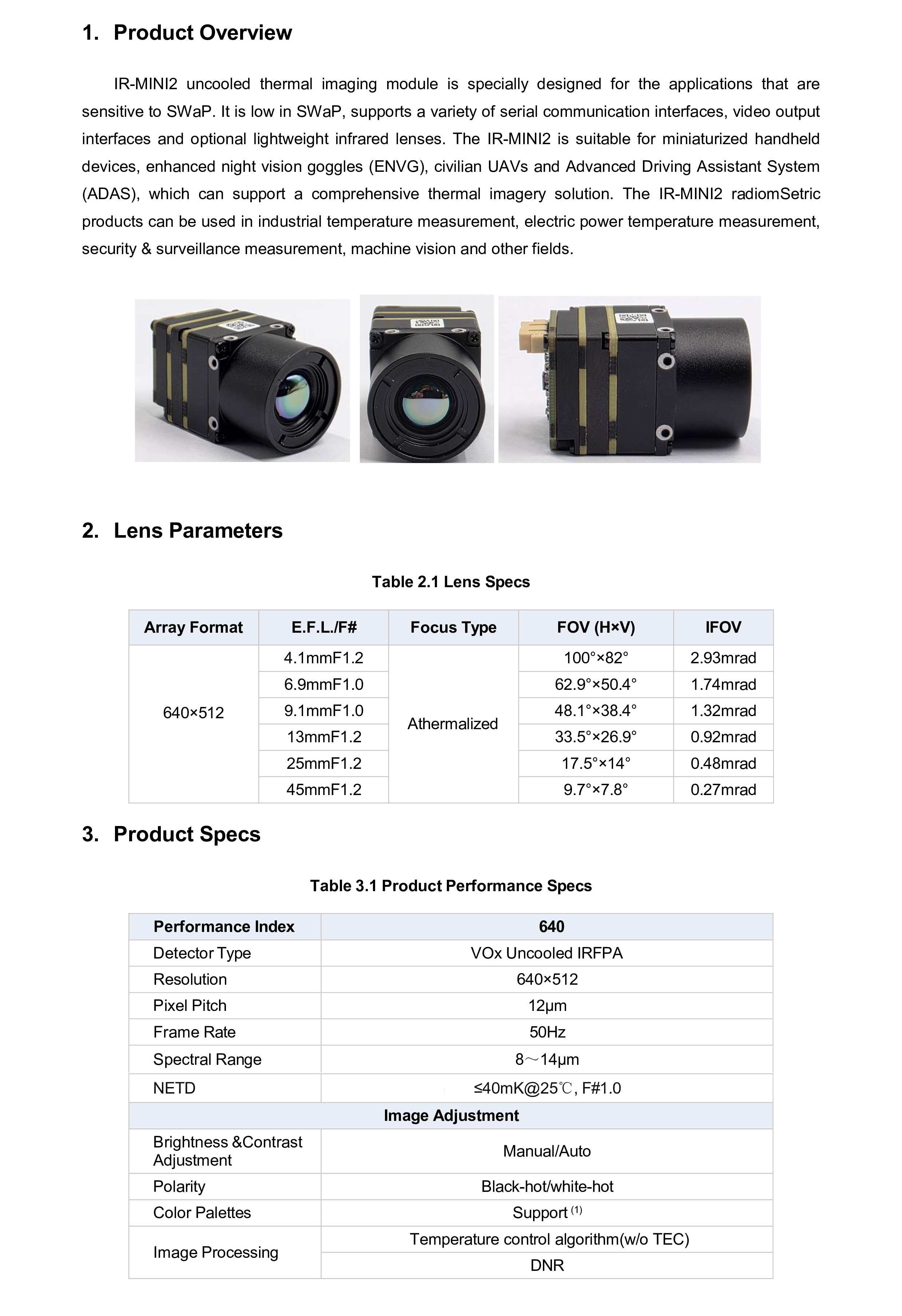

- Multiple Lens Options: 4.1mm/6.9mm/9.1mm/13mm/25mm/45mm athermalized lenses
- 50Hz Frame Rate: Smooth real-time thermal video
- High Sensitivity: NETD ≤40mK for detecting subtle temperature differences

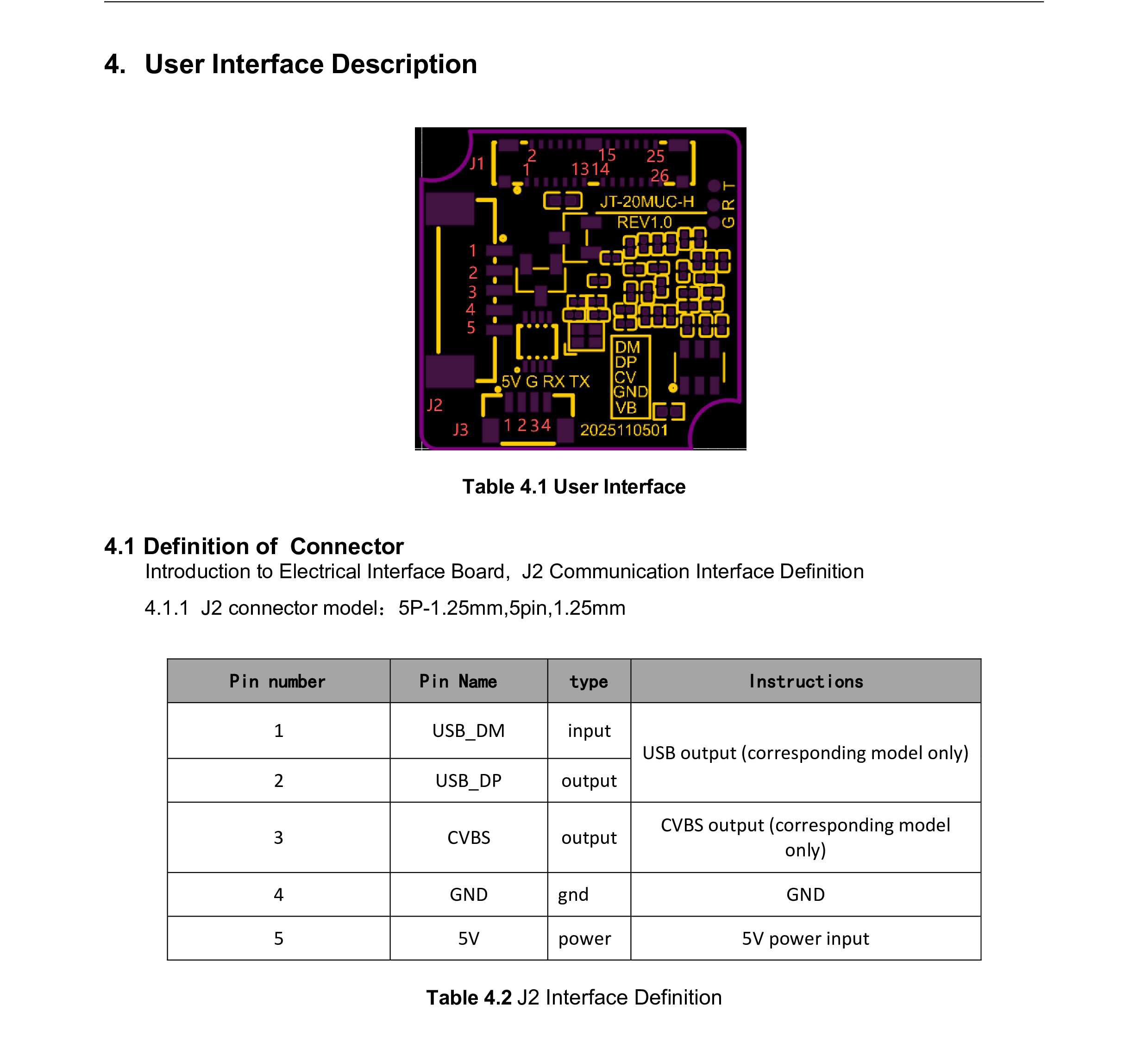

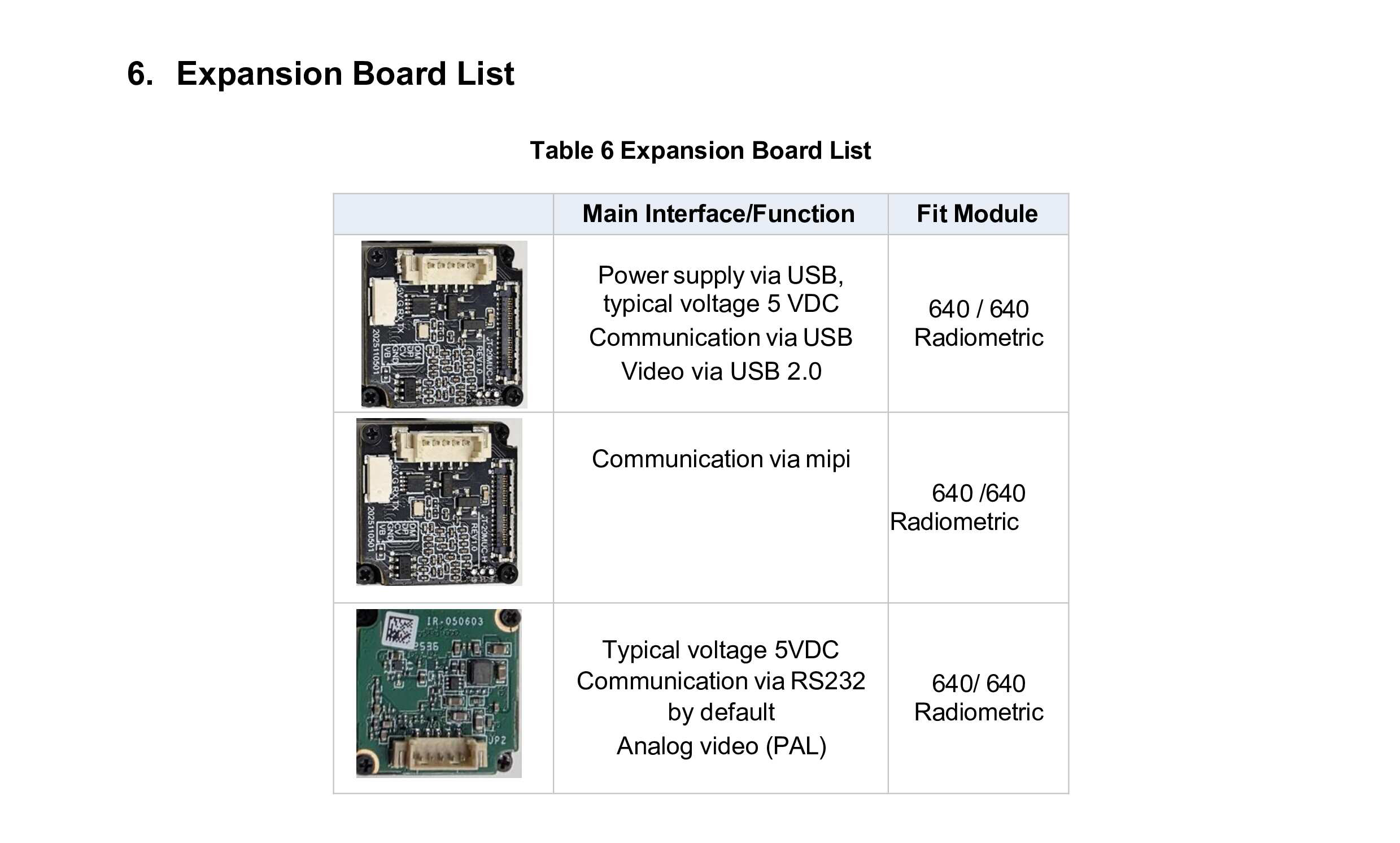

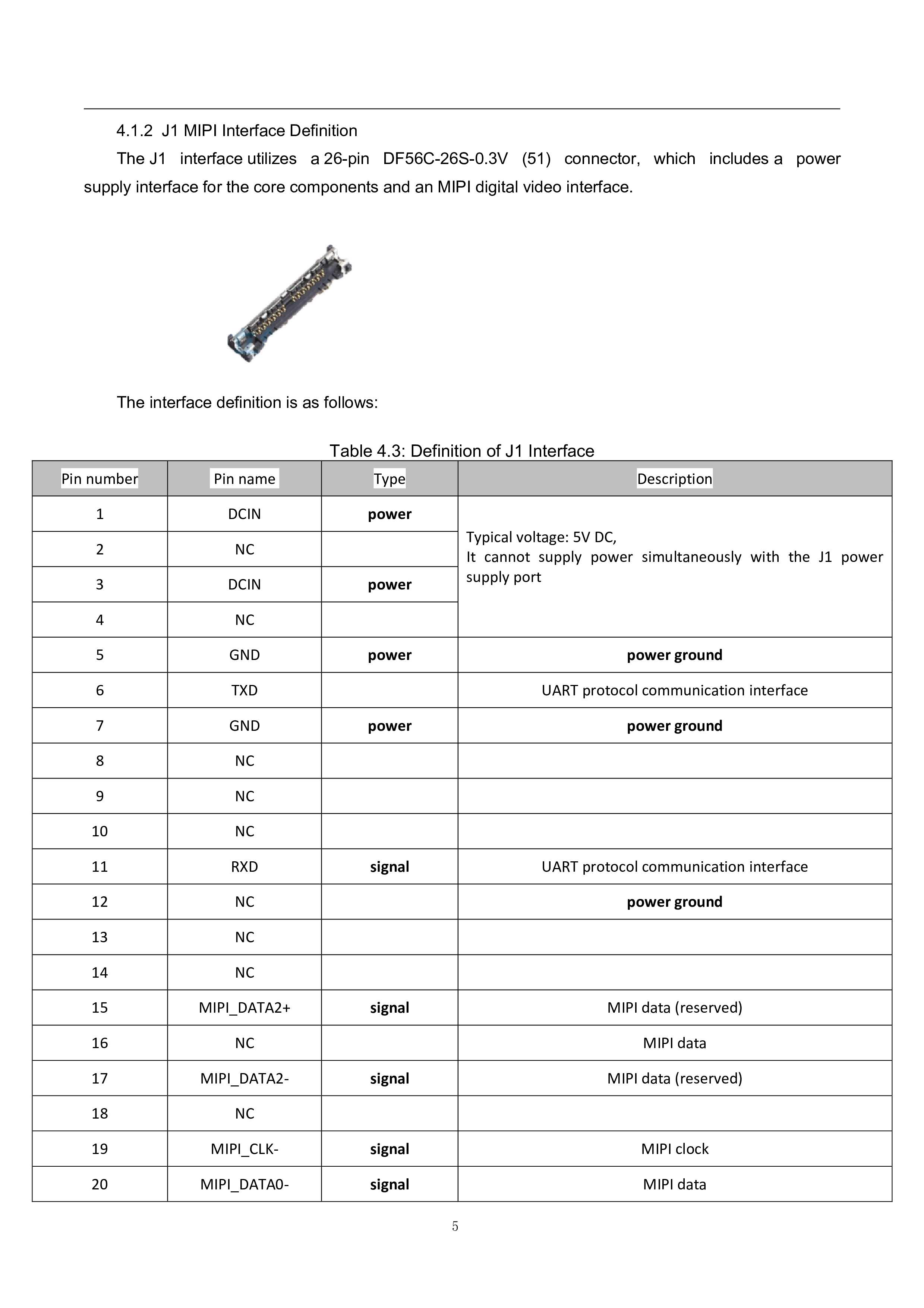

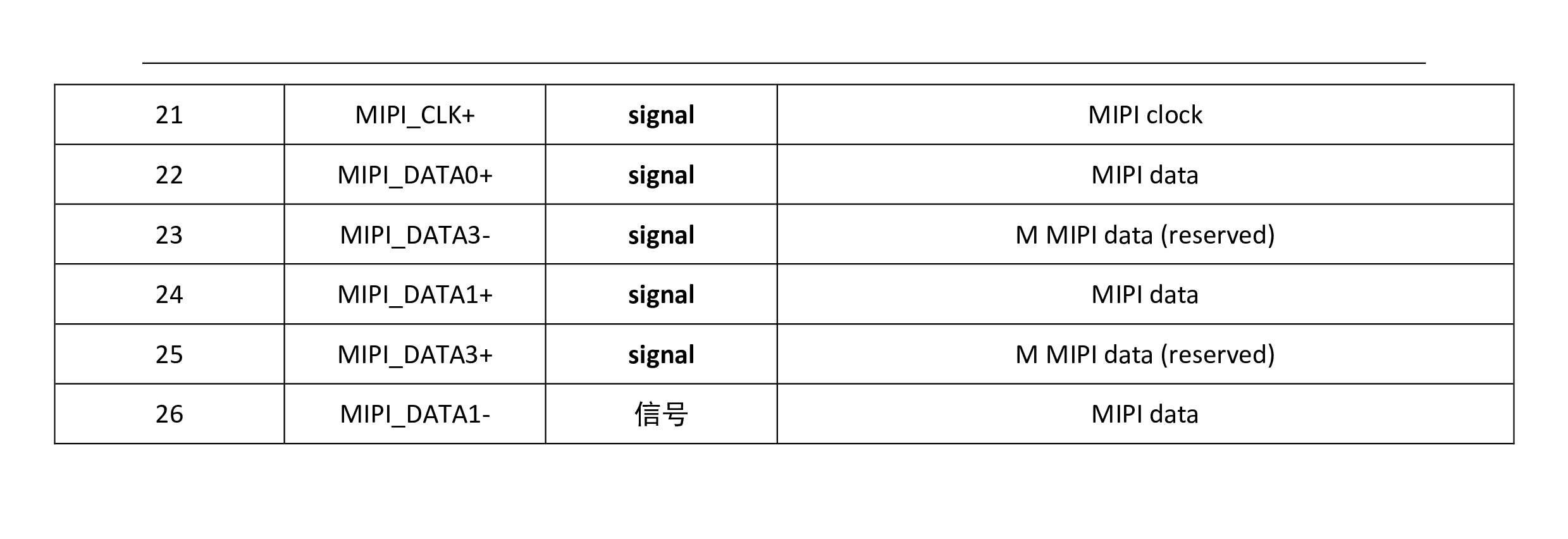

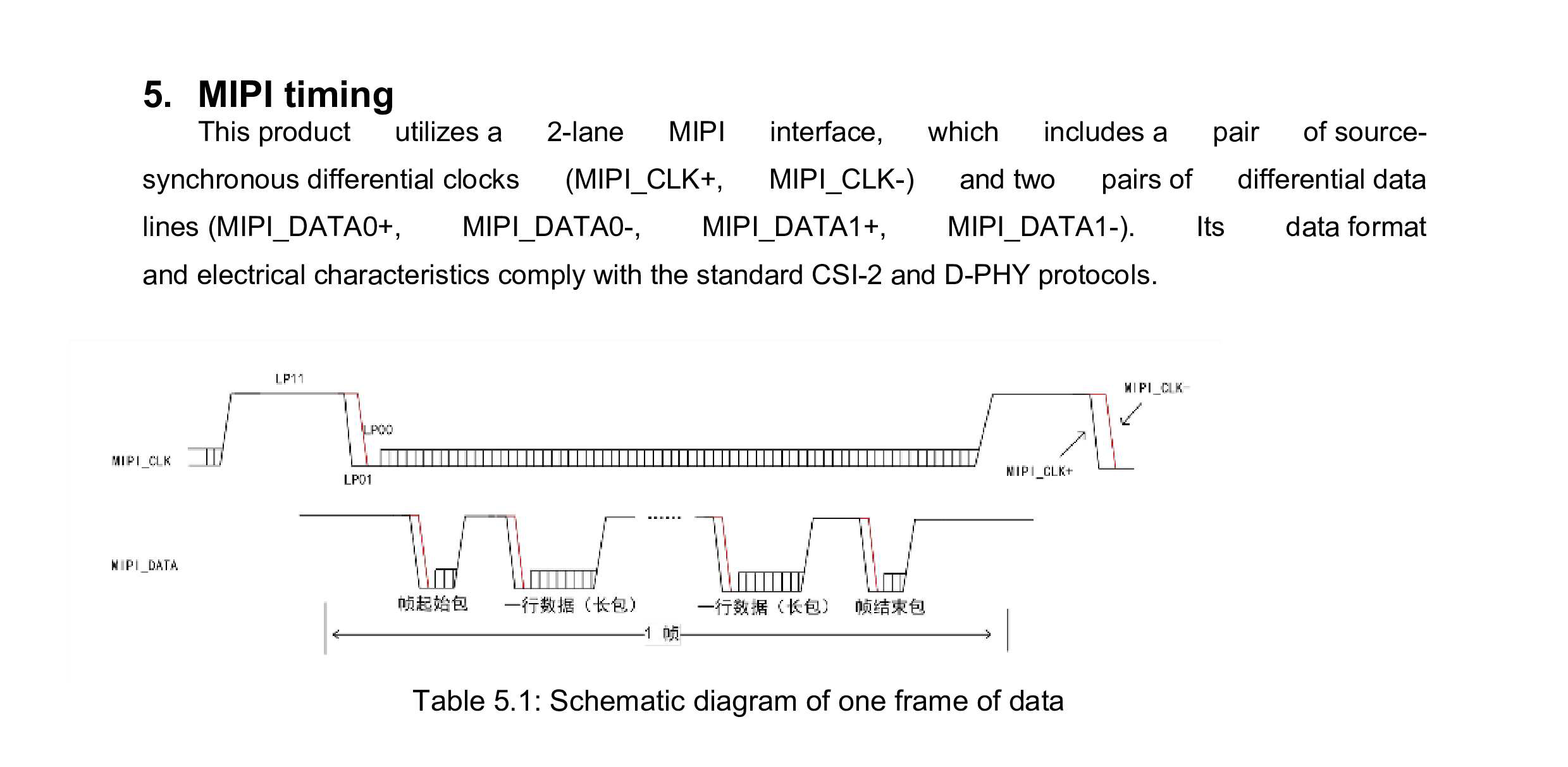

- Multi-Interface Support: MIPI, USB, CVBS, and UART serial communication

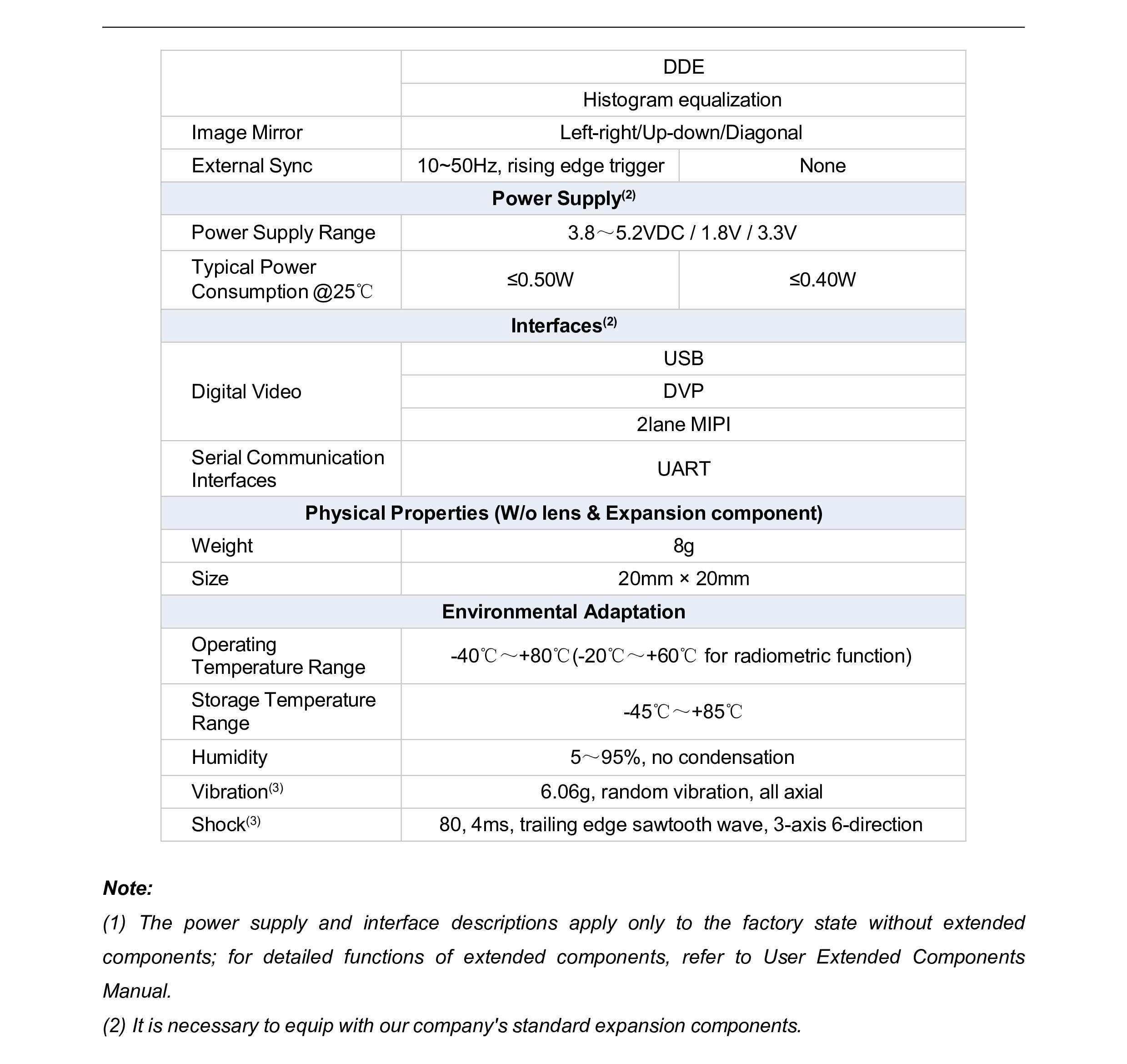

- Ultra-Low Power: ≤0.50W consumption at 25℃

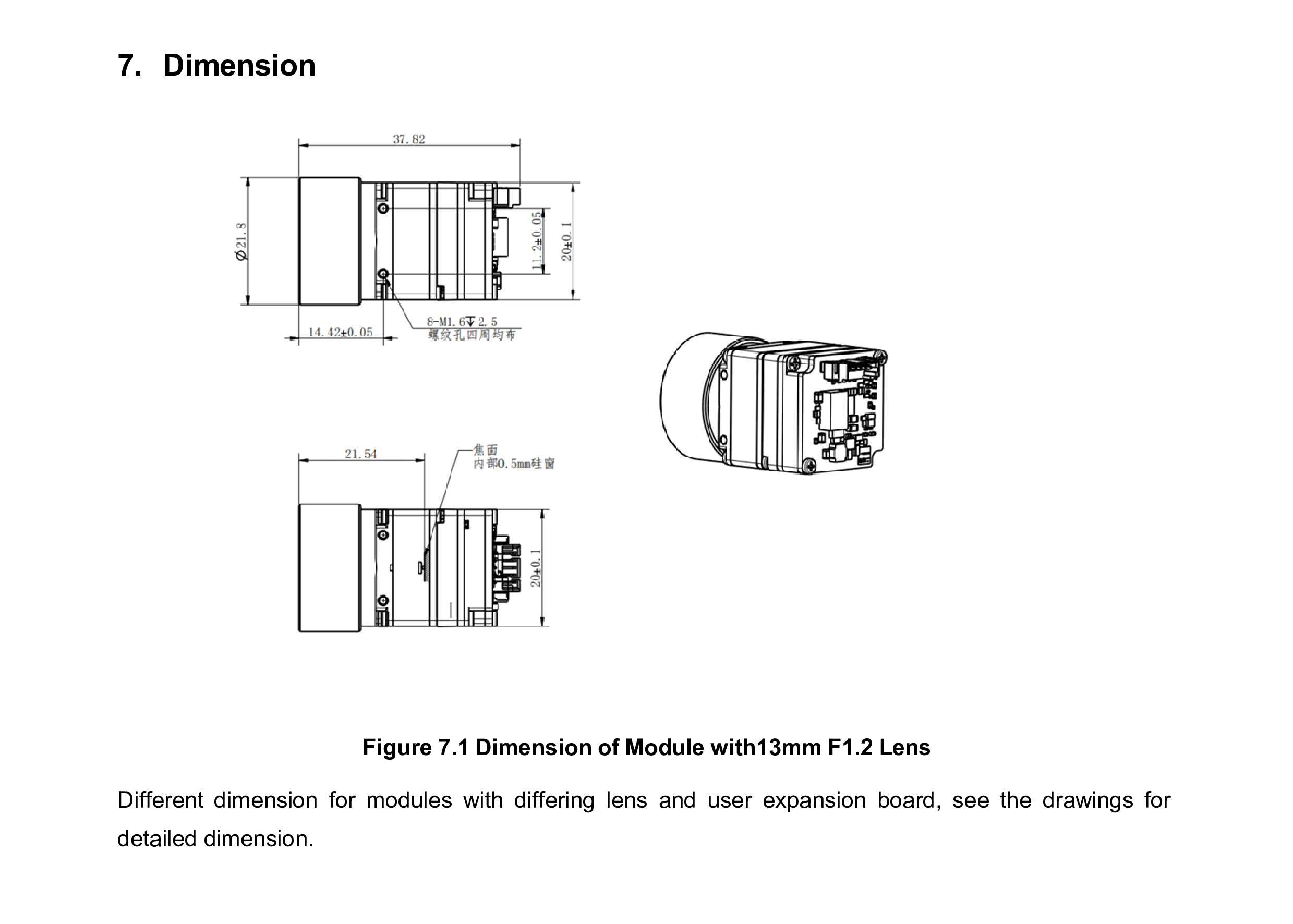

- Ultra-Compact Design: 20×20mm size, only 8g weight
- Wide Operating Range: -40℃ to +80℃
Ideal Applications
- Civilian UAV payloads
- Miniaturized handheld thermal devices
- Night vision goggles (ENVG)
- Advanced Driver Assistance Systems (ADAS)
- Industrial temperature measurement and security surveillance
Why Choose IR-MINI2
The IR-MINI2 packs professional-grade thermal imaging into an ultra-compact, low-power form factor. With flexible lens and interface options, it delivers reliable thermal vision for your most demanding, space‑constrained projects.
