JS-56-UVC Thermal Imaging Module
High Resolution | Integrated Temperature Measurement | UVC Plug-and-Play | Compact & Rugged
The JS-56-UVC is a high-performance uncooled thermal imaging module with USB Video Class (UVC) plug-and-play connectivity, ideal for embedded systems and industrial monitoring.

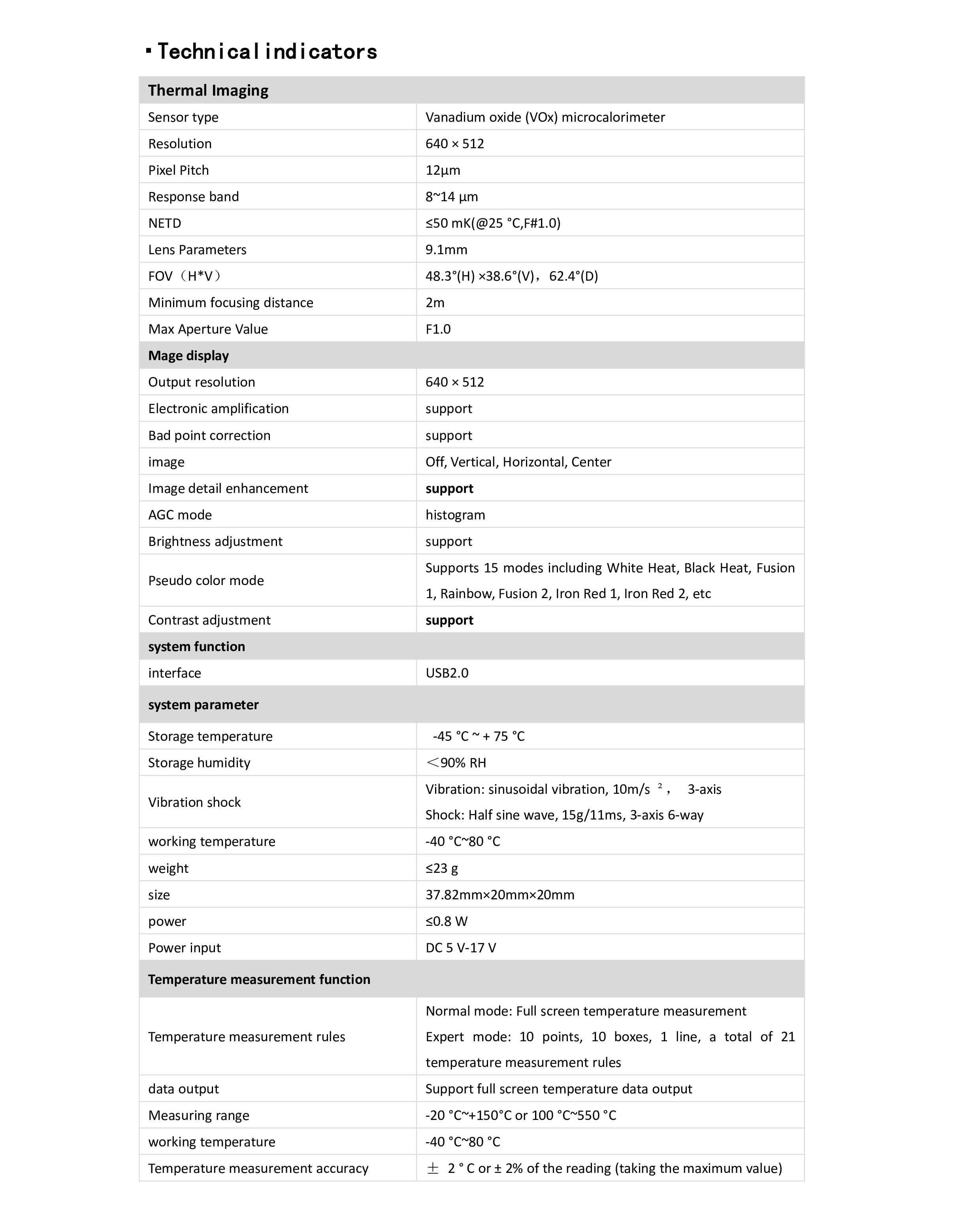

Key Features
- 640×512 Resolution: Crisp thermal imagery with 12μm pixel pitch
- High Sensitivity: NETD ≤50mK for subtle temperature difference detection
- 9.1mm F1.0 Lens: Delivers 48.3°×38.6° FOV, focusing from 2m
- Built-in Temperature Measurement: Supports full-screen and multi-point analysis
- UVC USB 2.0 Interface: Simple plug-and-play integration
- Comprehensive Image Processing: AGC, contrast/brightness adjustment, bad point correction, 15+ pseudo-color modes

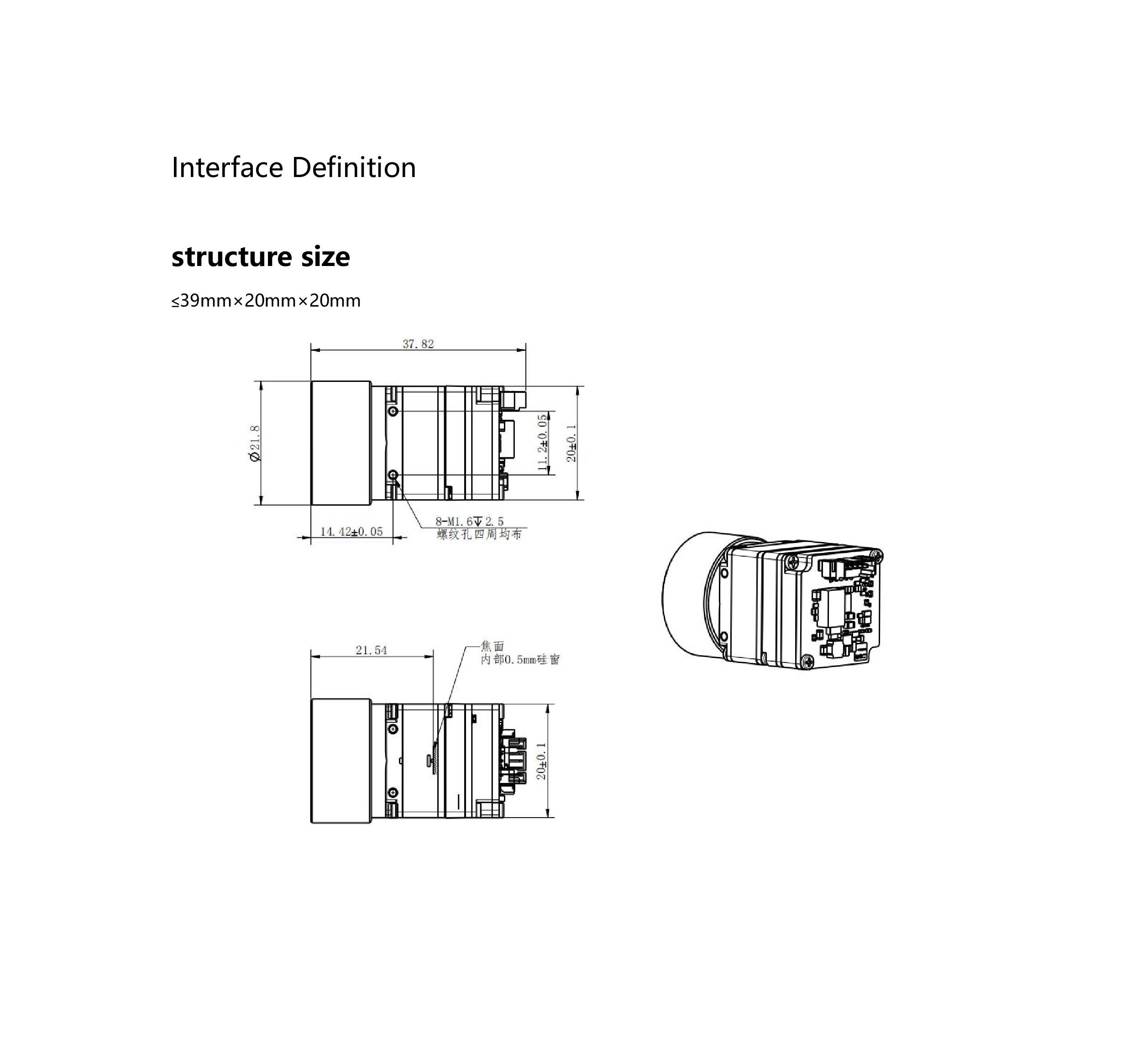

- Ultra-Compact & Lightweight: ≤39×20×20mm, ≤23g
- Wide Operating Range: -40°C to +80°C
Ideal Applications
- Industrial process monitoring
- Building inspection
- Custom thermal projects
- Portable temperature devices
- Research and development
Why Choose JS-56-UVC
The JS-56-UVC combines high-resolution thermal imaging, accurate temperature measurement, and simple UVC connectivity in a rugged, ultra-compact package. It’s ideal for adding professional-grade thermal capabilities to your projects with minimal integration effort.
