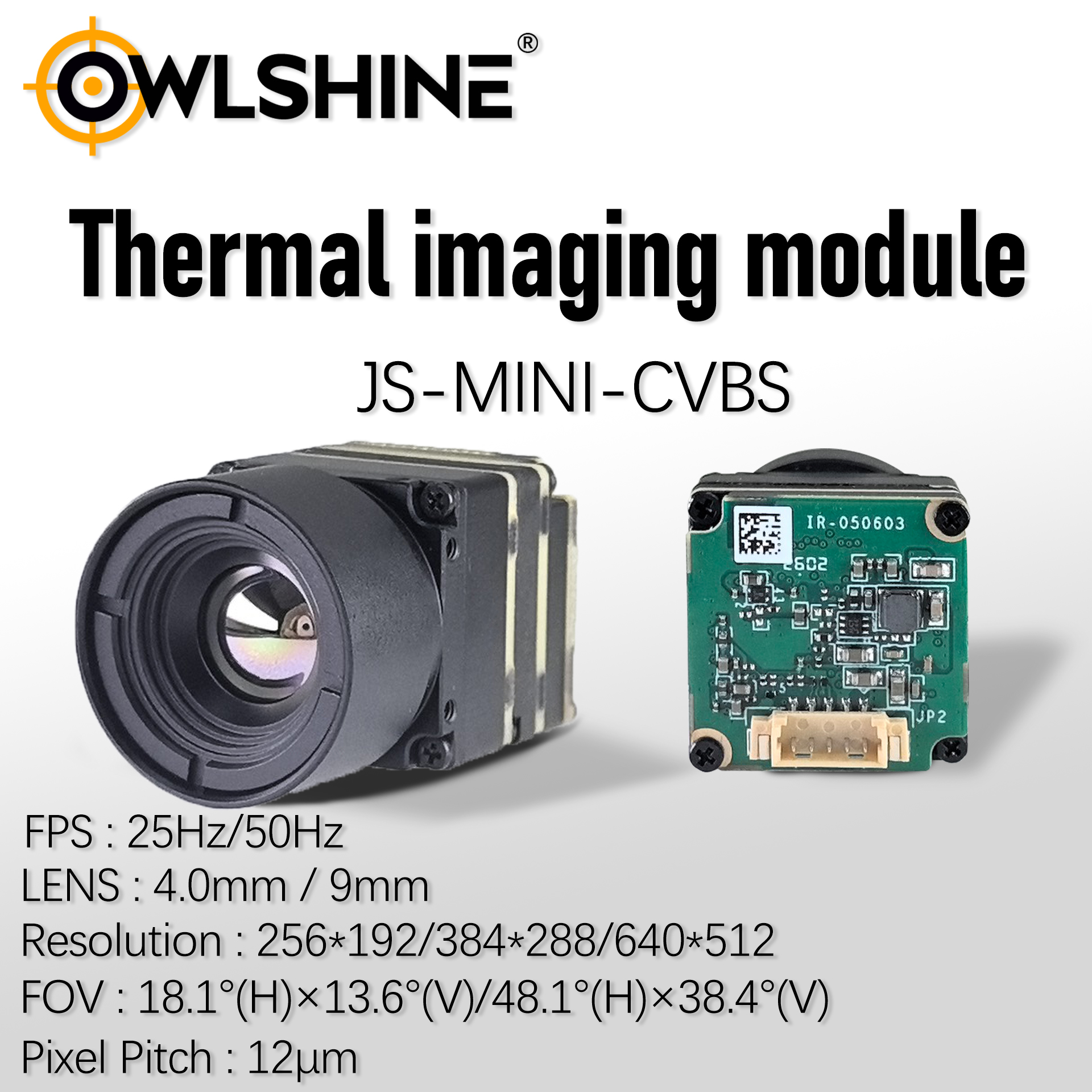

JS-MINI-CVBS Thermal Imaging Module
High Resolution | Ultra-Compact | Low Power | Easy Integration

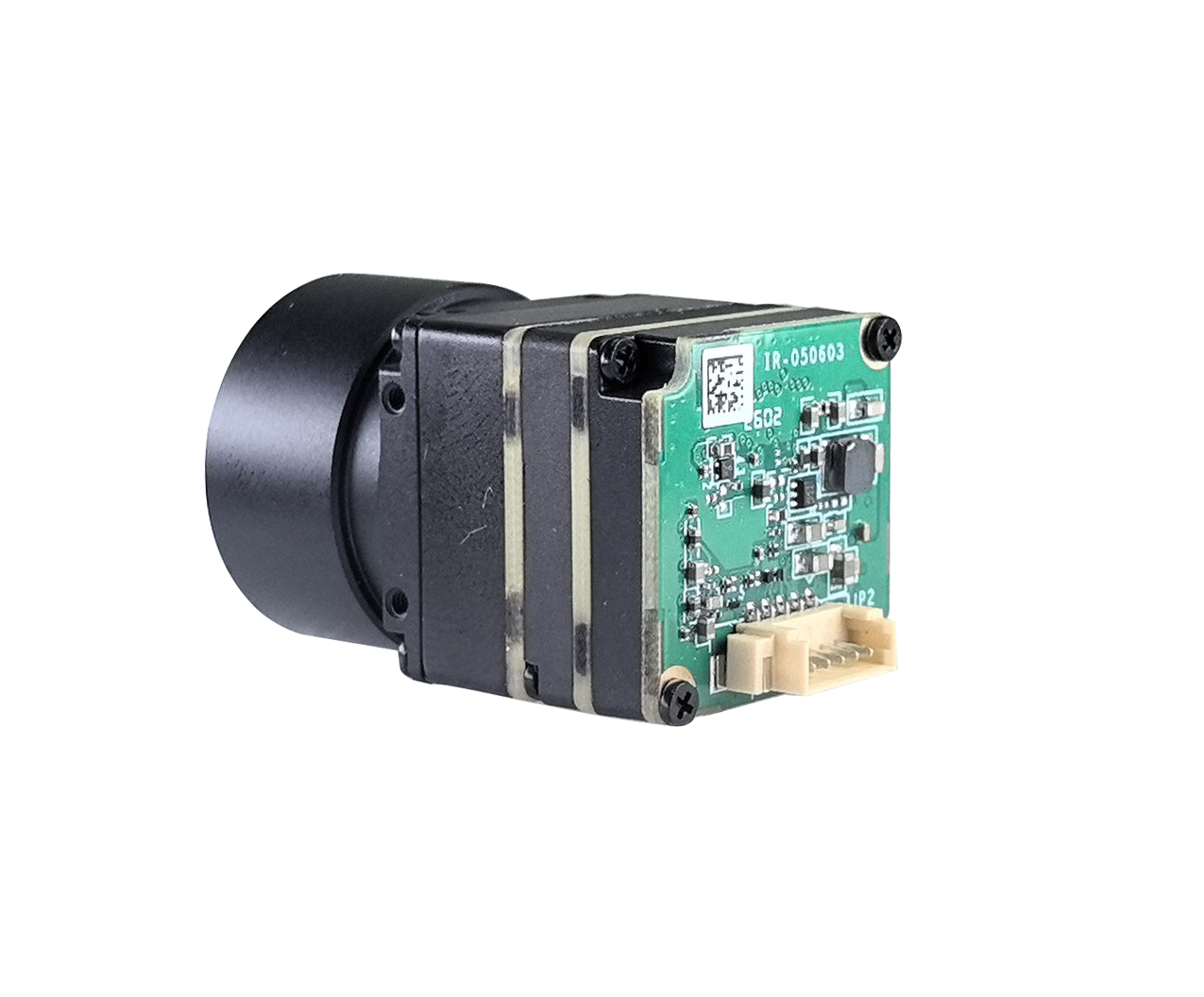

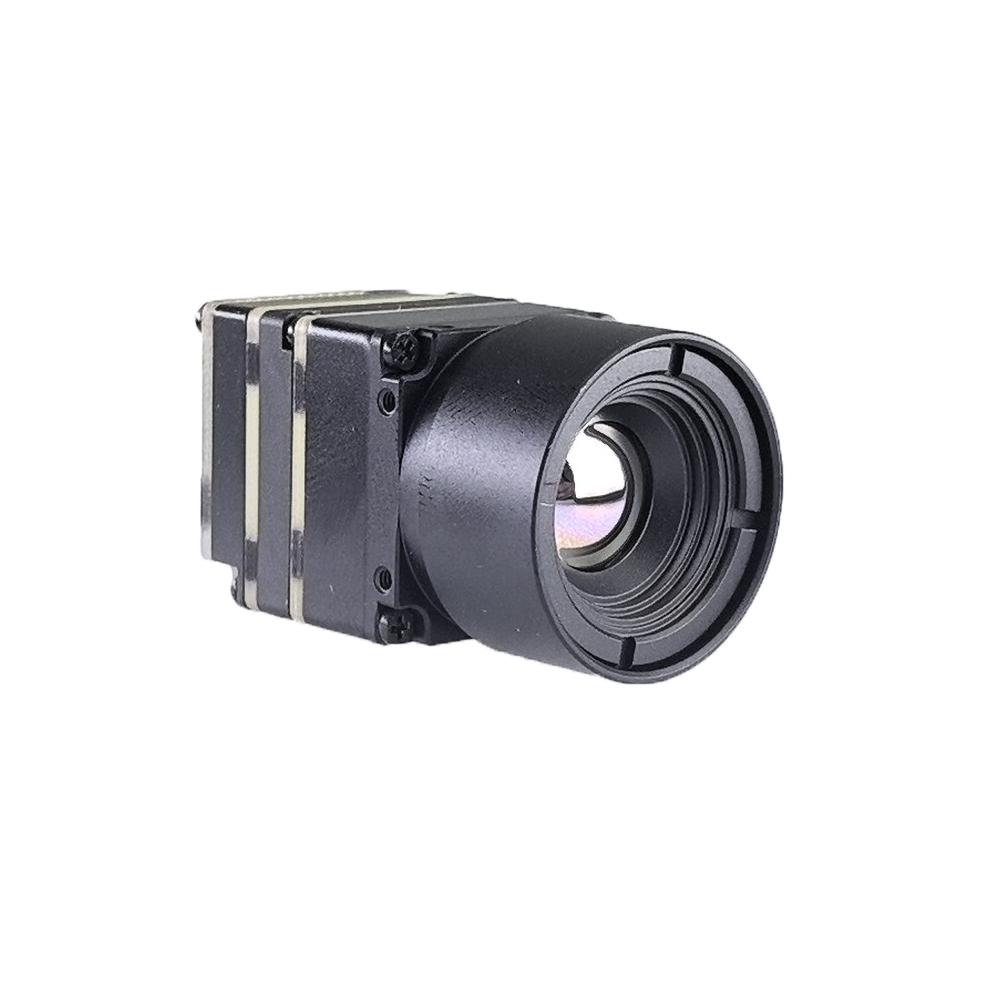

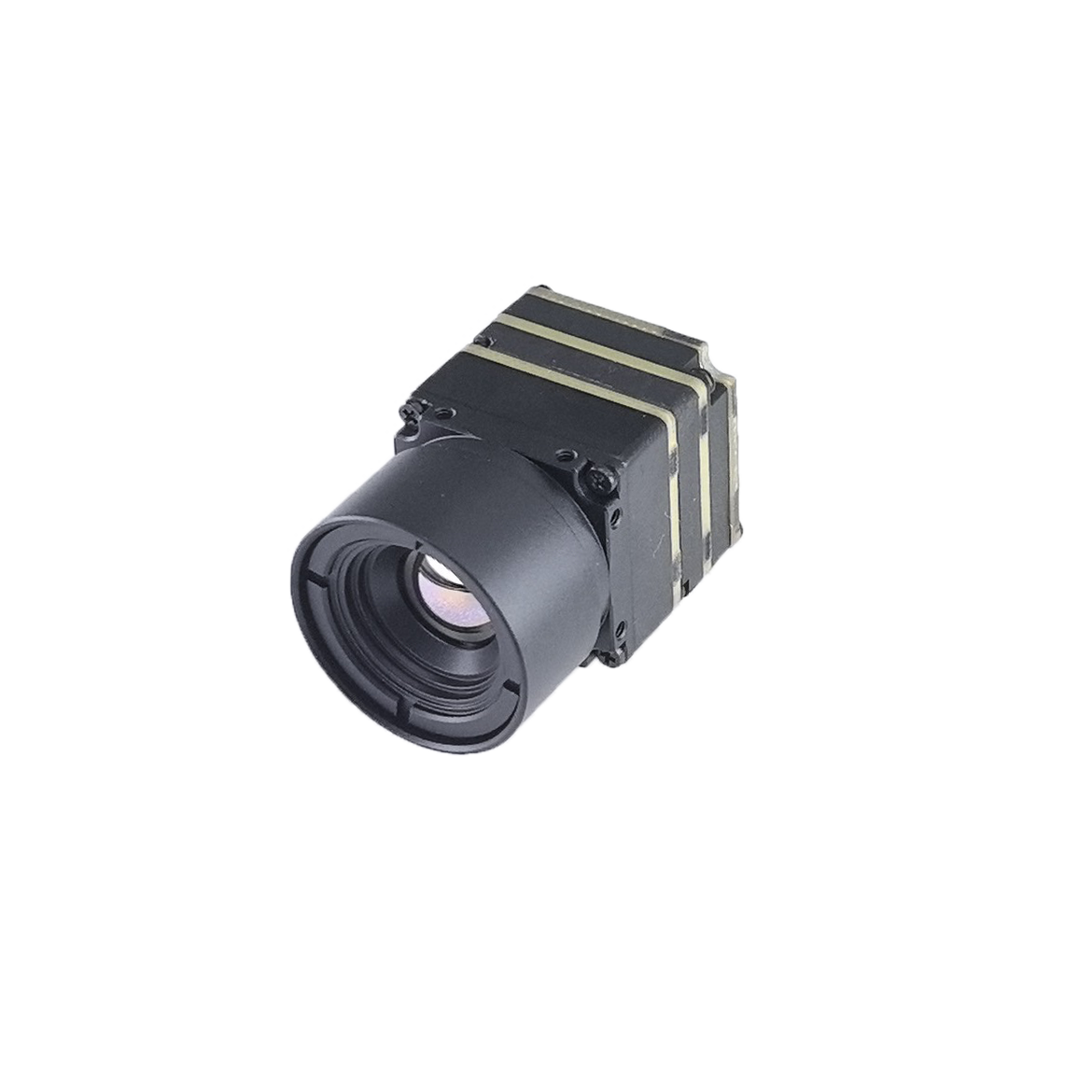

The JS-MINI-CVBS is an ultra-compact uncooled thermal imaging module built for seamless integration. It delivers clear thermal imagery in darkness, fog, or low light, ideal for small-form-factor systems.
Key Features
- Multi-Resolution Options: 256×192 / 384×288 / 640×512 thermal detectors
- Lens Choices: 4.0mm/9.0mm options with FOV from 18.1°×13.6° to 48.1°×38.4°
- Flexible Frame Rate: 25Hz / 50Hz for smooth real-time video
- High Sensitivity: NETD ≤40mK for detecting subtle temperature differences

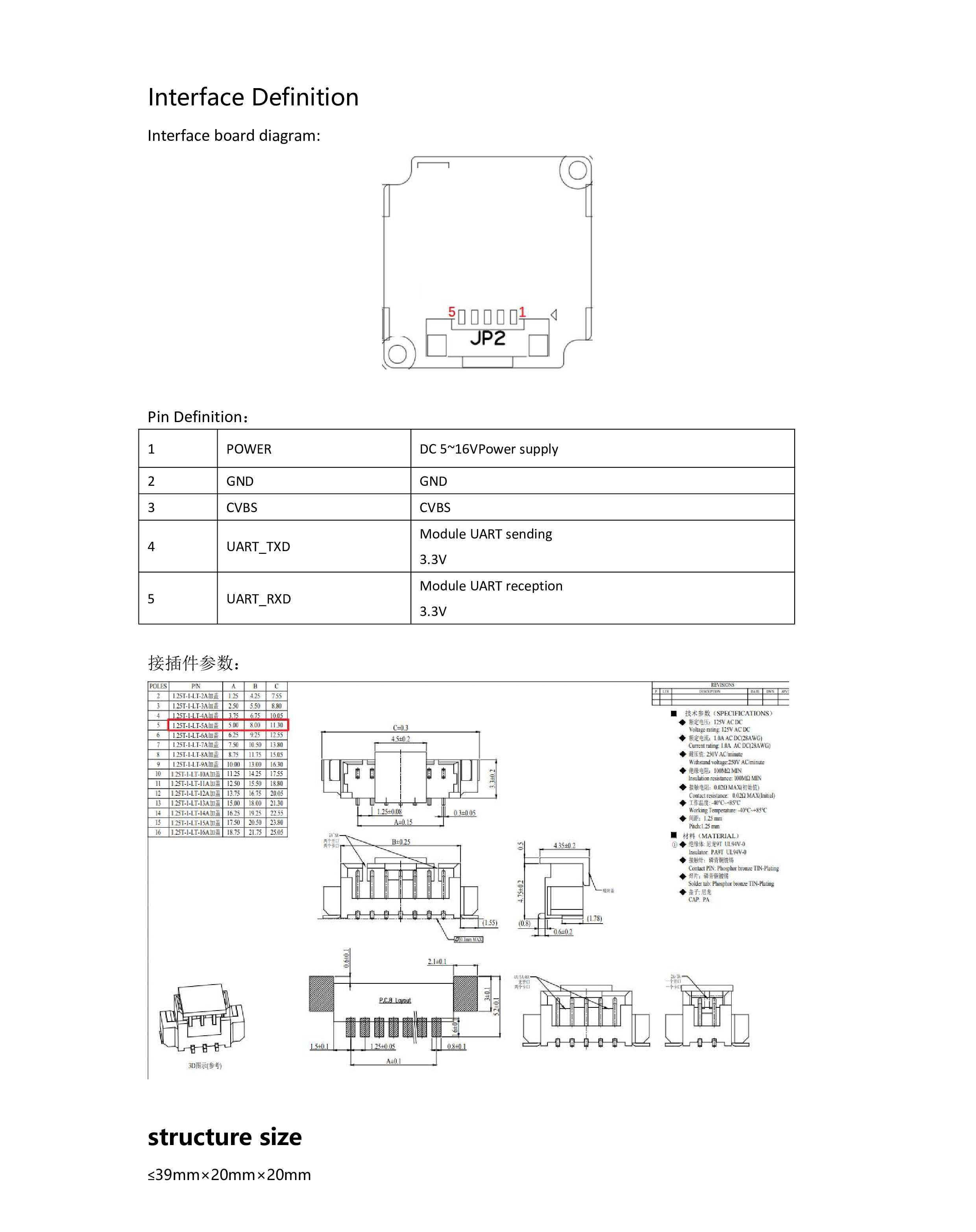

- CVBS Analog Output: PAL standard interface for simple integration
- Low Power Consumption: ≤0.8W, supports 5V~16V wide voltage input

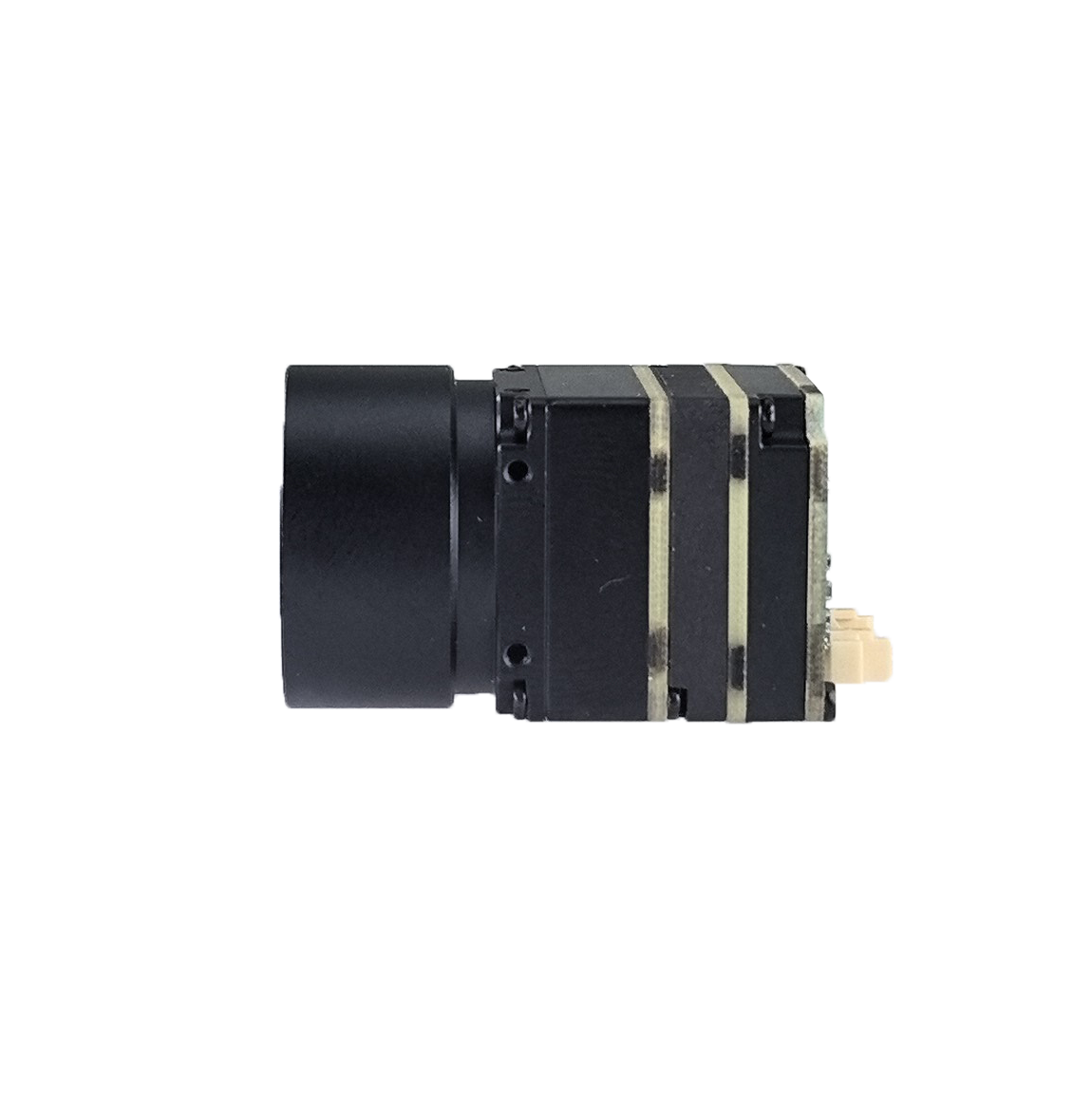

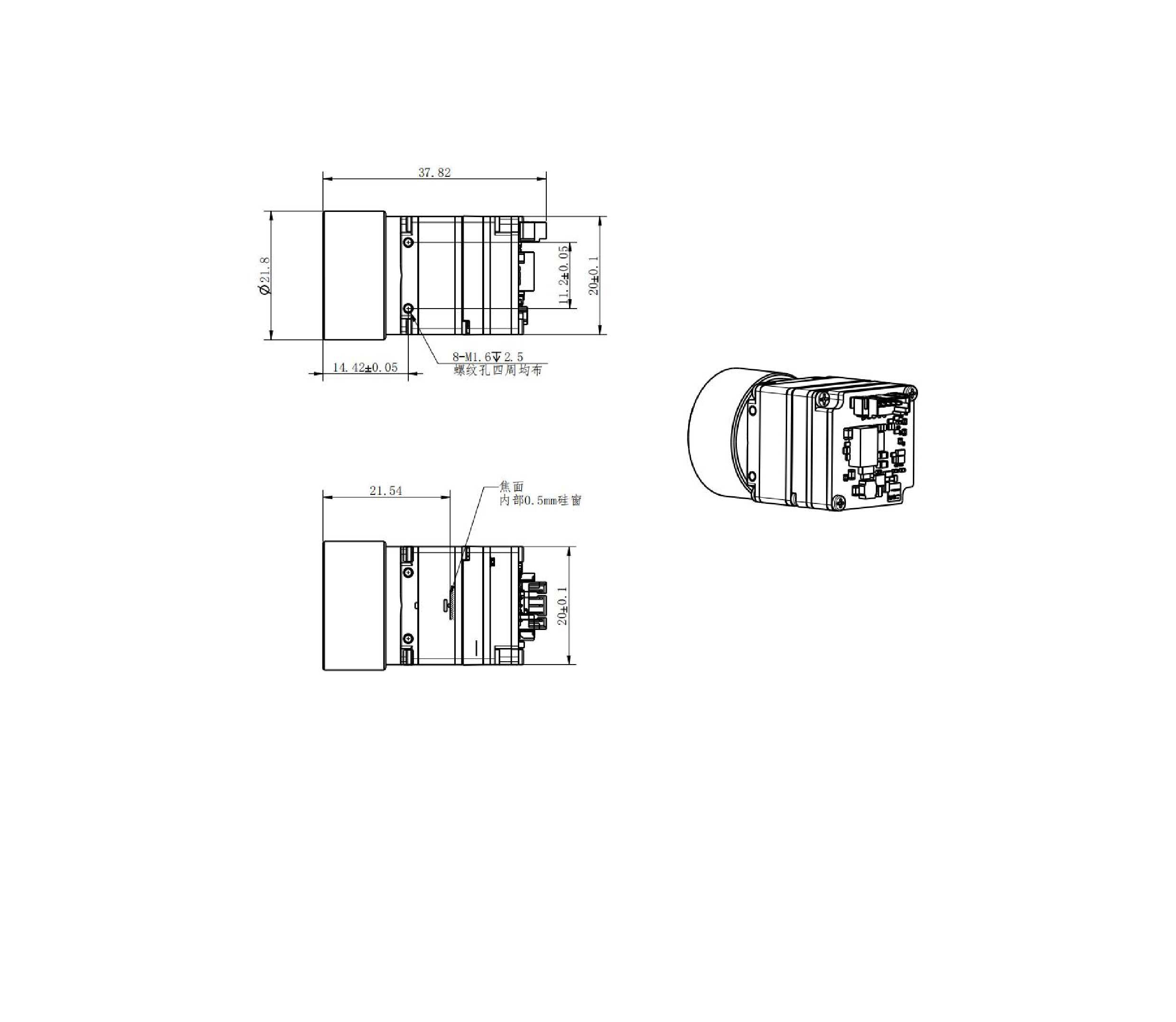

- Ultra-Compact Design: ≤39×20×20mm dimensions, ≤23g weight
Ideal Applications
- Small UAV/Drone payloads
- Portable security & surveillance systems
- Industrial temperature monitoring
- Vehicle auxiliary night vision
- Low-power embedded systems
Why Choose JS-MINI-CVBS
The ultra-compact JS-MINI-CVBS packs professional thermal performance into a tiny footprint, ideal for space-sensitive projects. With multi-resolution/lens options, it delivers clear, reliable vision that integrates seamlessly into your designs.
