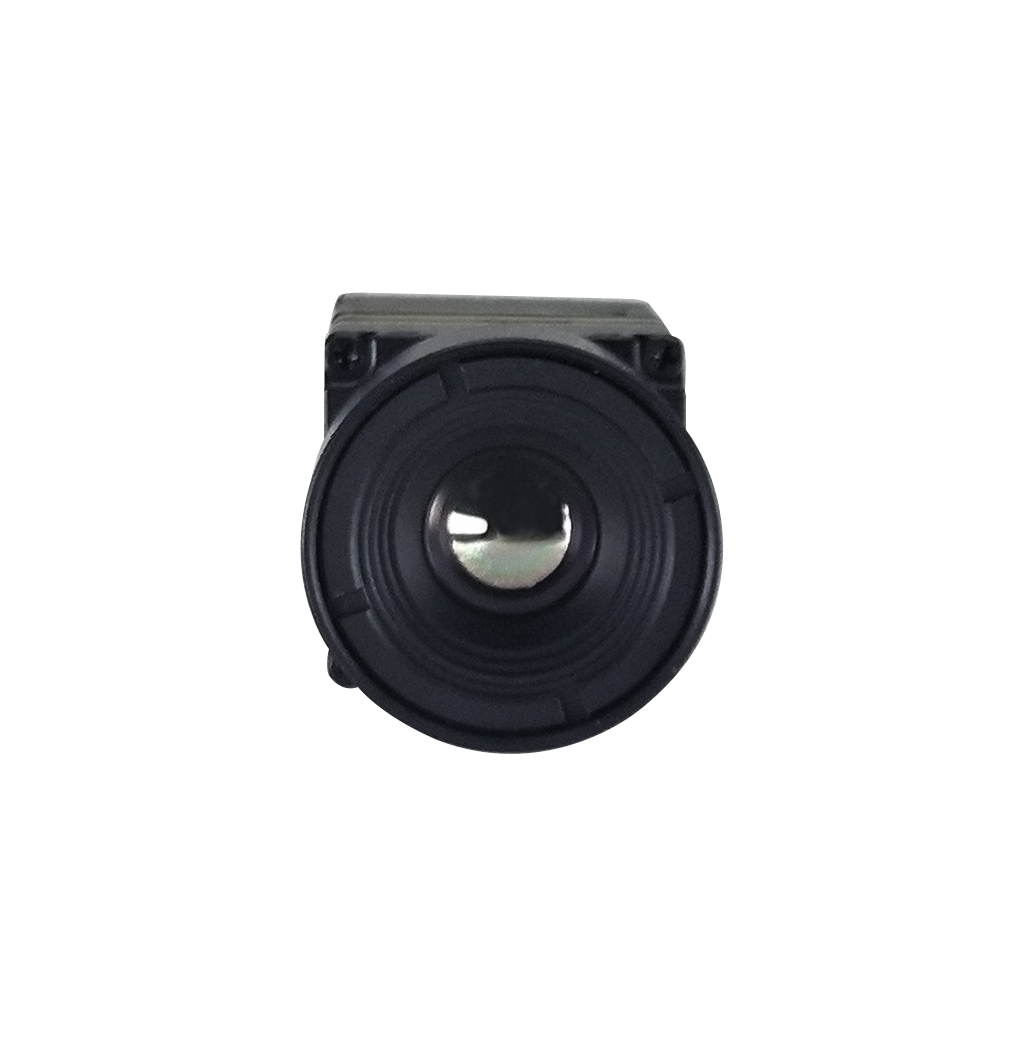

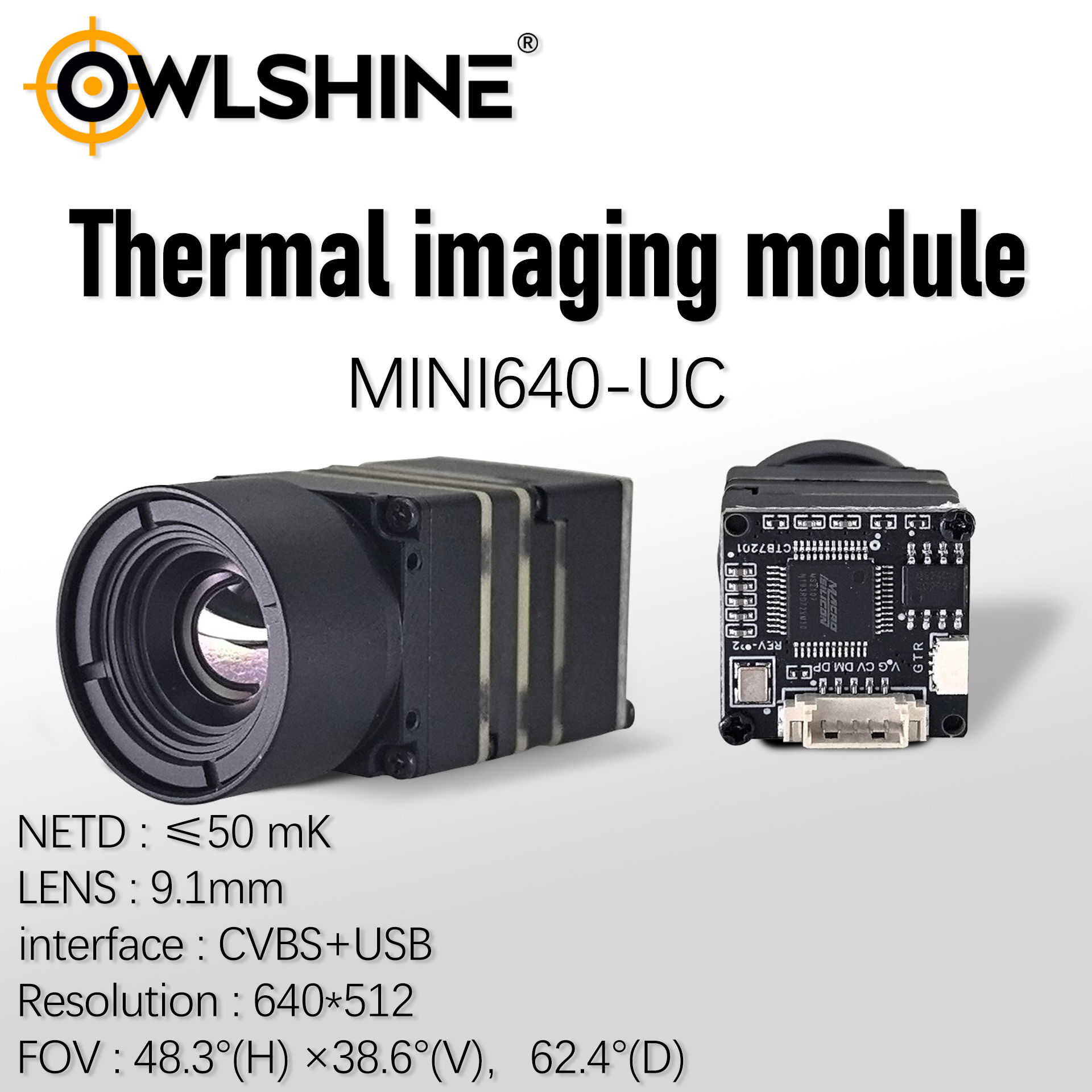

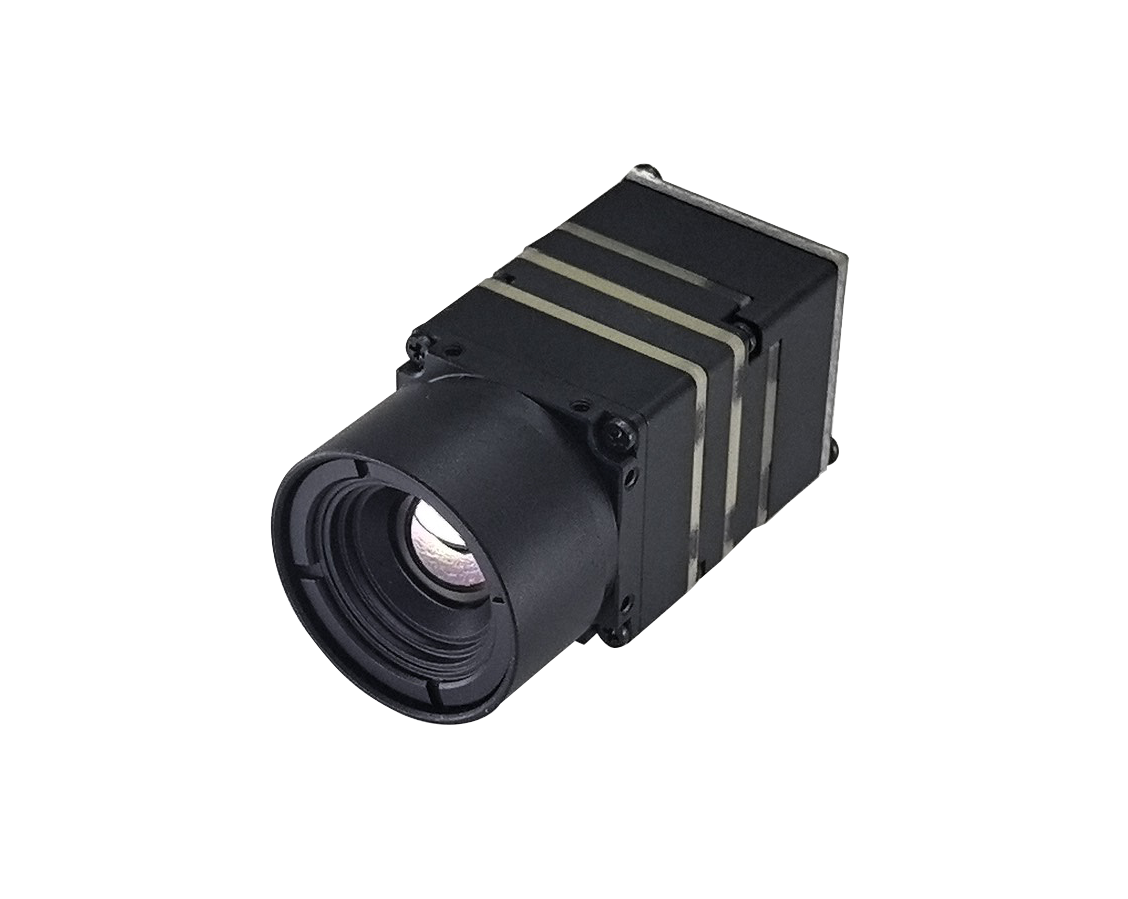

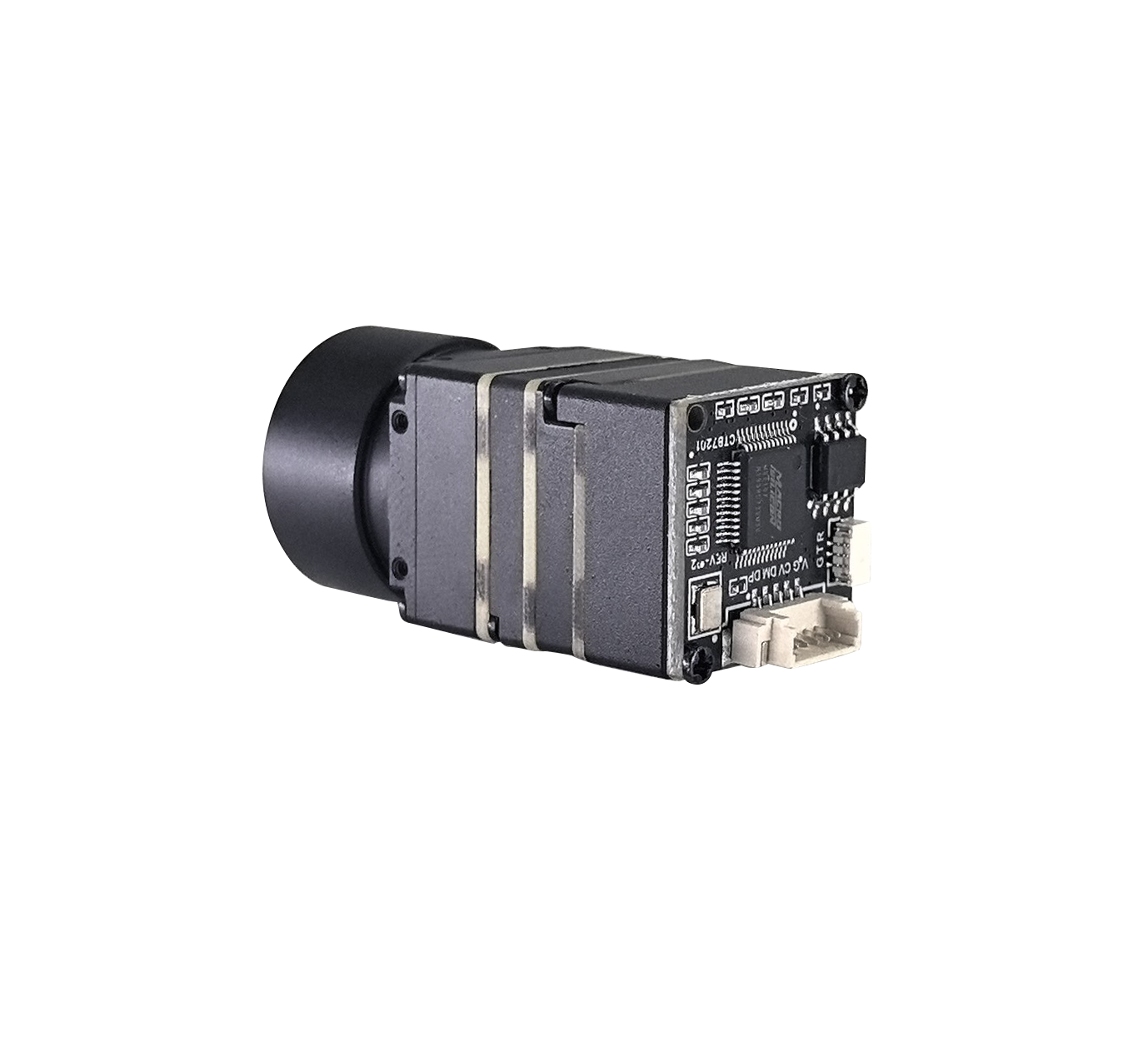

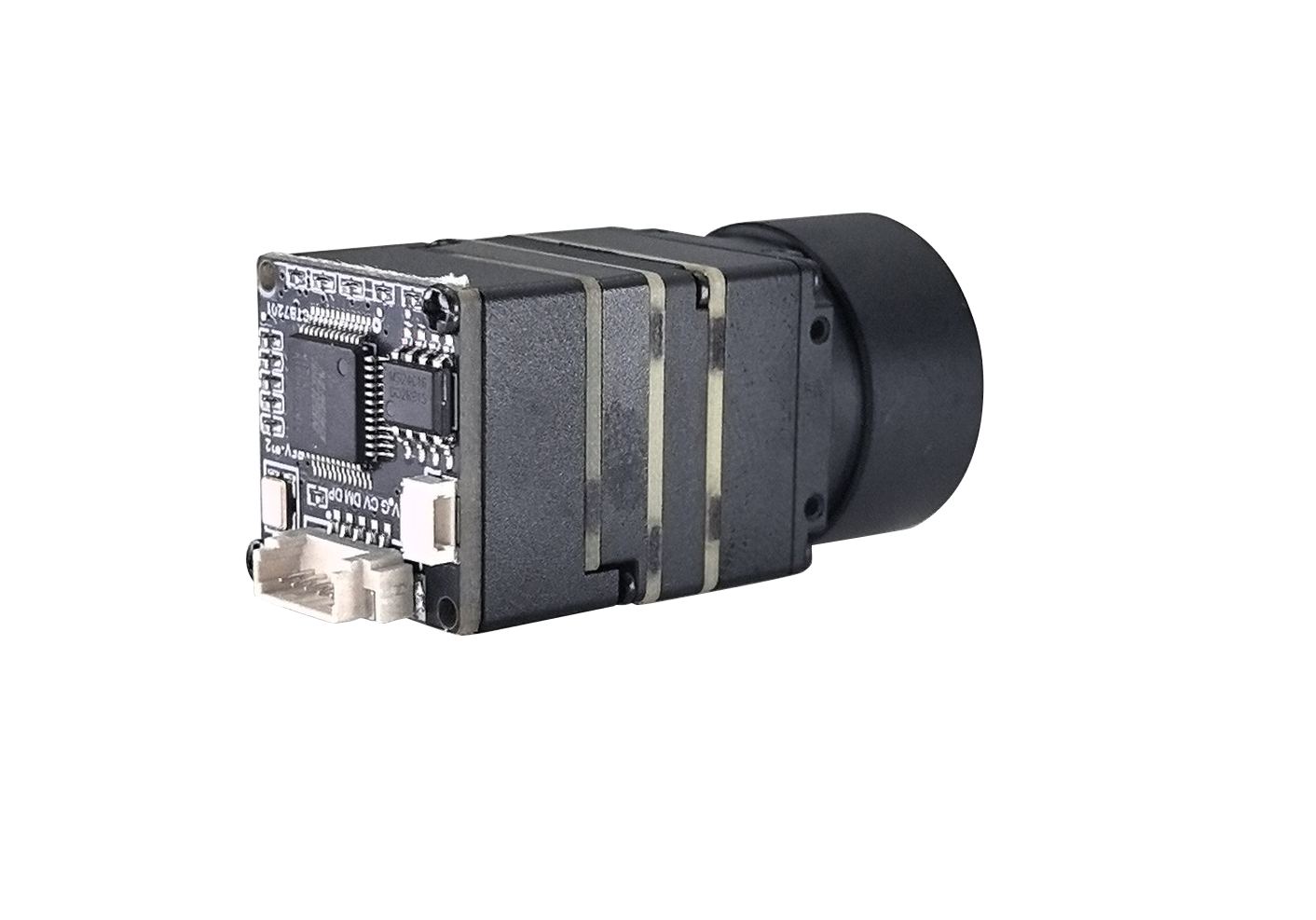

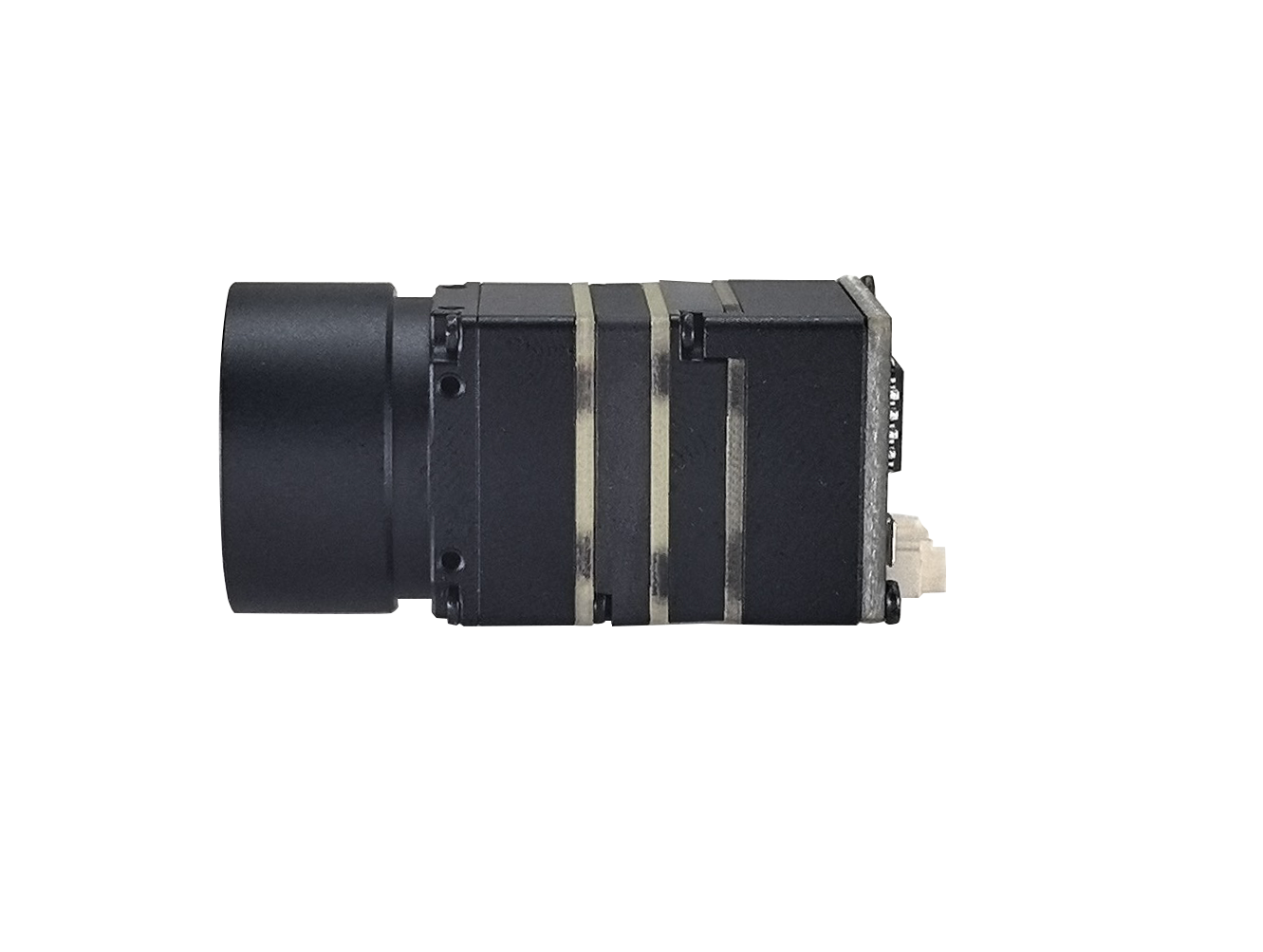

MINI640-UC Thermal Imaging Module
Dual Output | High Sensitivity | Ultra-Compact | Plug-and-Play
The MINI640-UC is a high-performance uncooled thermal imaging module, combining crisp 640×512 resolution with both analog CVBS and digital USB outputs. It’s designed for seamless integration into embedded systems, security cameras, and industrial monitoring equipment.
Key Features

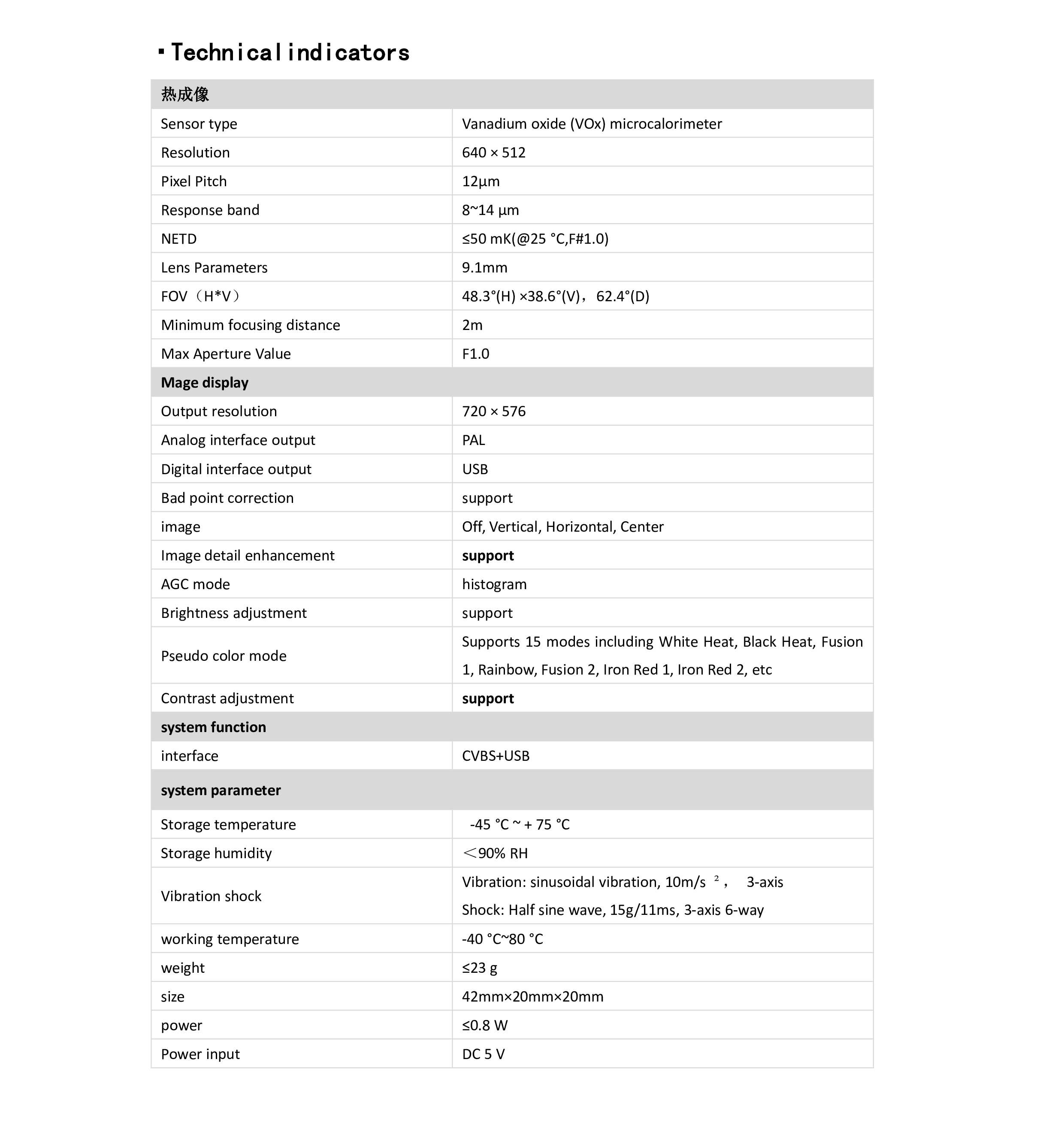

- 640×512 Resolution: VOx microbolometer with 12μm pixel pitch
- High Sensitivity: NETD ≤50mK for clear thermal detection
- 9.1mm F1.0 Lens: 48.3°×38.6° FOV, focusing from 2m

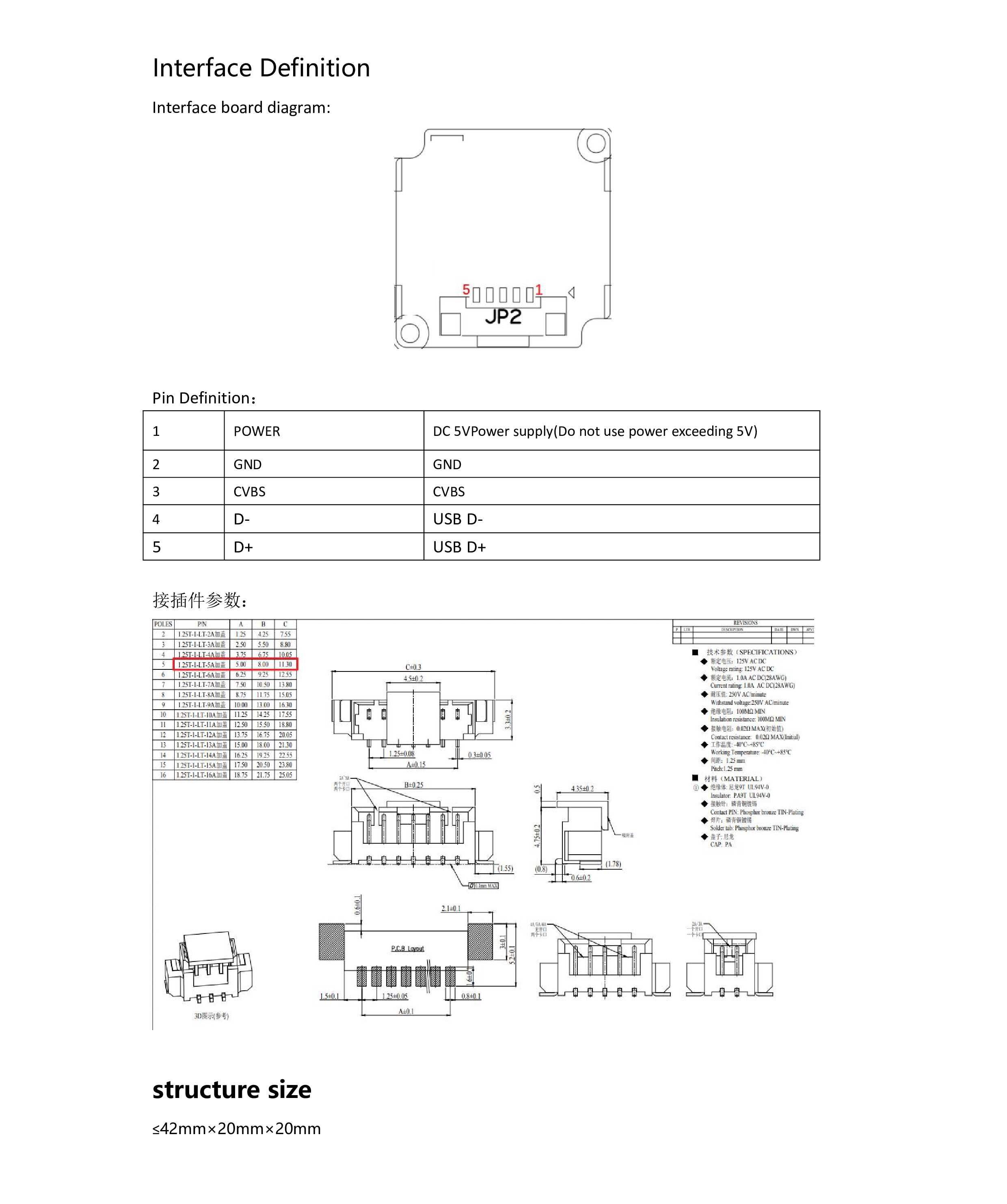

- Dual Interfaces: CVBS analog video (PAL) + USB digital output
- Full Image Processing: AGC, contrast/brightness control, bad point correction, 15+ color palettes
- Ultra-Compact & Lightweight: ≤42×20×20mm, ≤23g
- Wide Operating Range: -40°C to +80°C, -45°C to +75°C storage
Ideal Applications
- Security and surveillance systems
- Industrial equipment monitoring
- DIY thermal vision projects
- Portable thermal cameras
- UAV payload integration
Why Choose MINI640-UC
The MINI640-UC delivers professional-grade thermal imaging in a tiny package, with dual output interfaces for maximum flexibility. It’s the ideal choice for projects requiring both analog and digital connectivity in a compact form factor.
