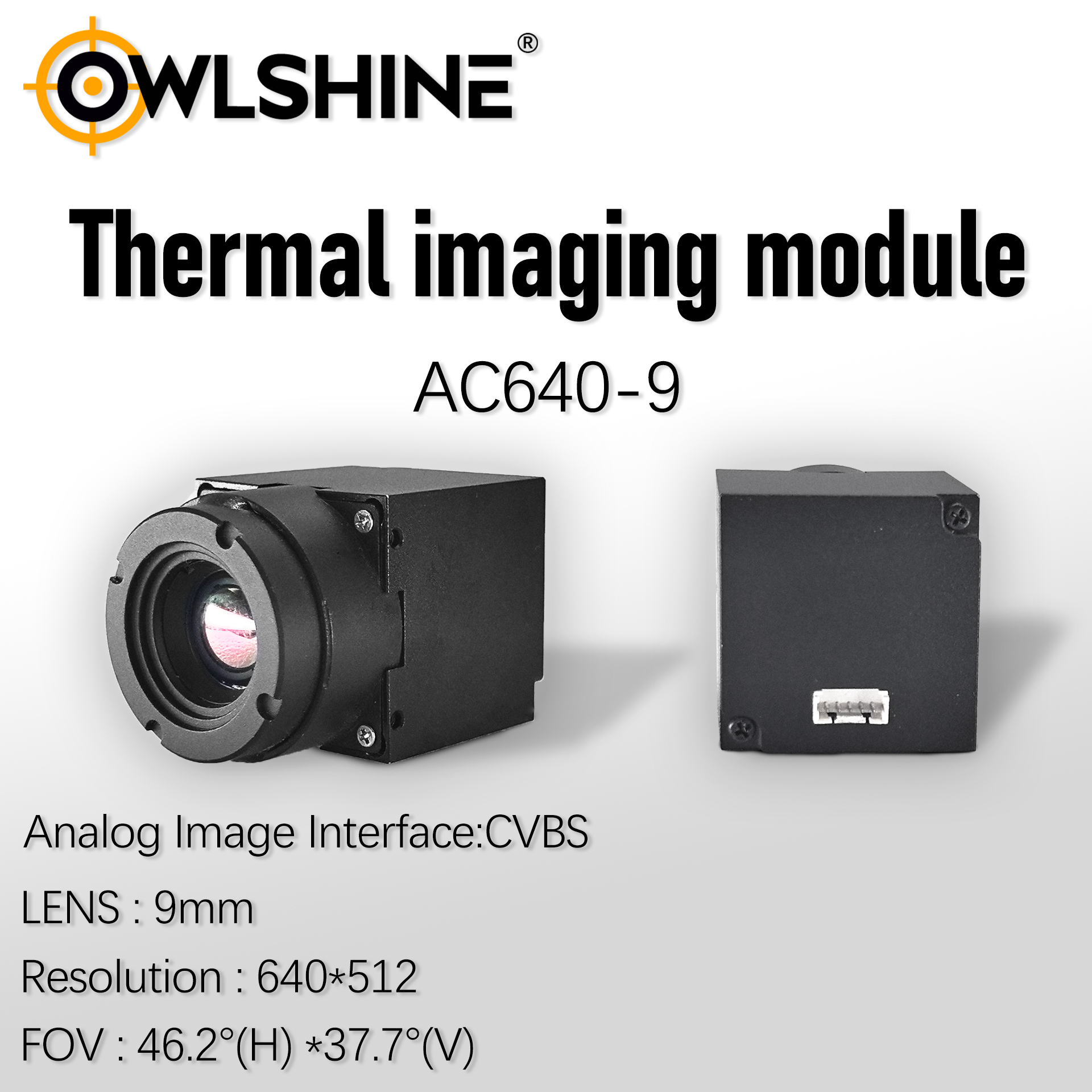

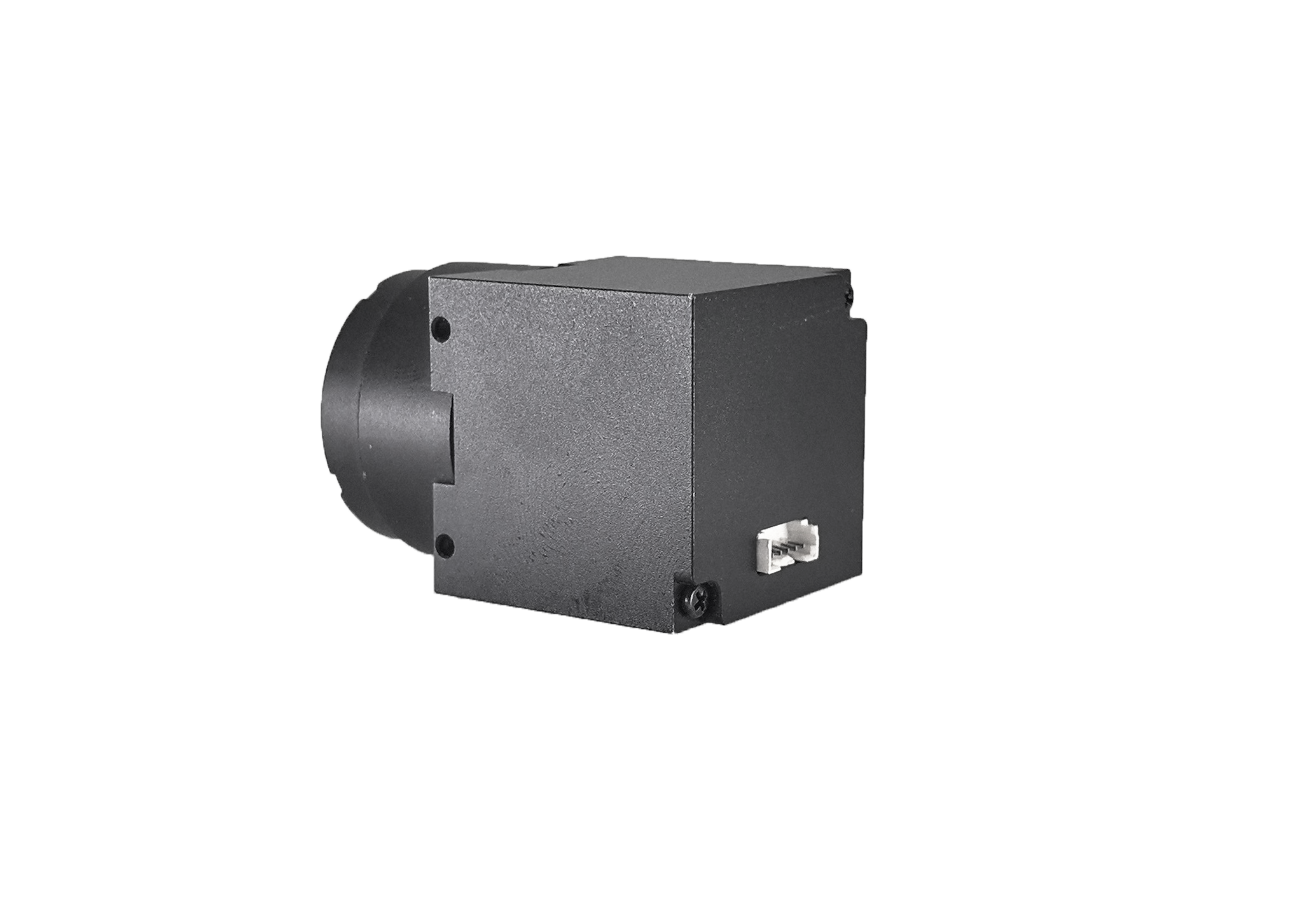

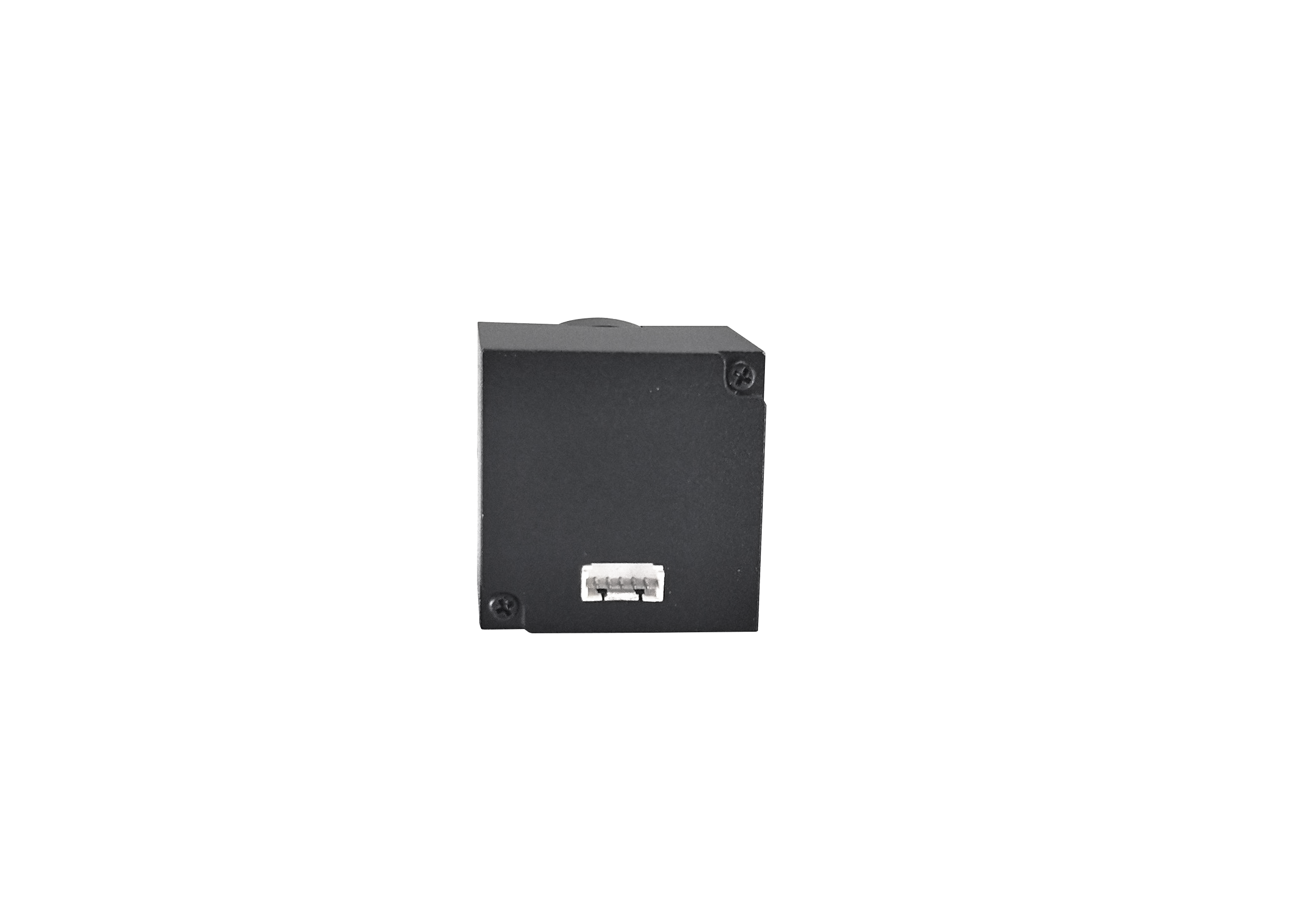

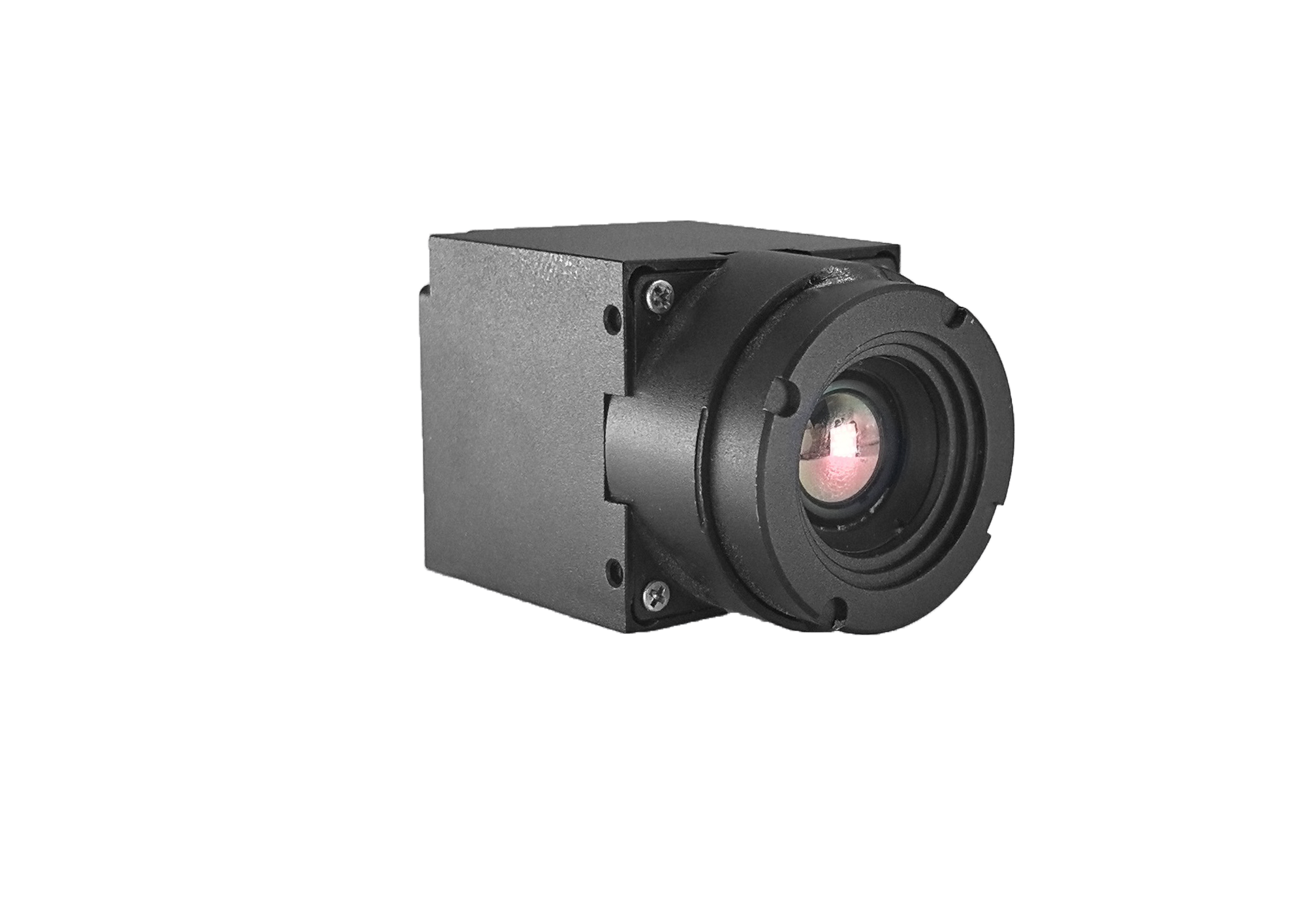

AC640-9 Thermal Imaging Module
High Resolution | Compact Size | Low Power | Easy Integration

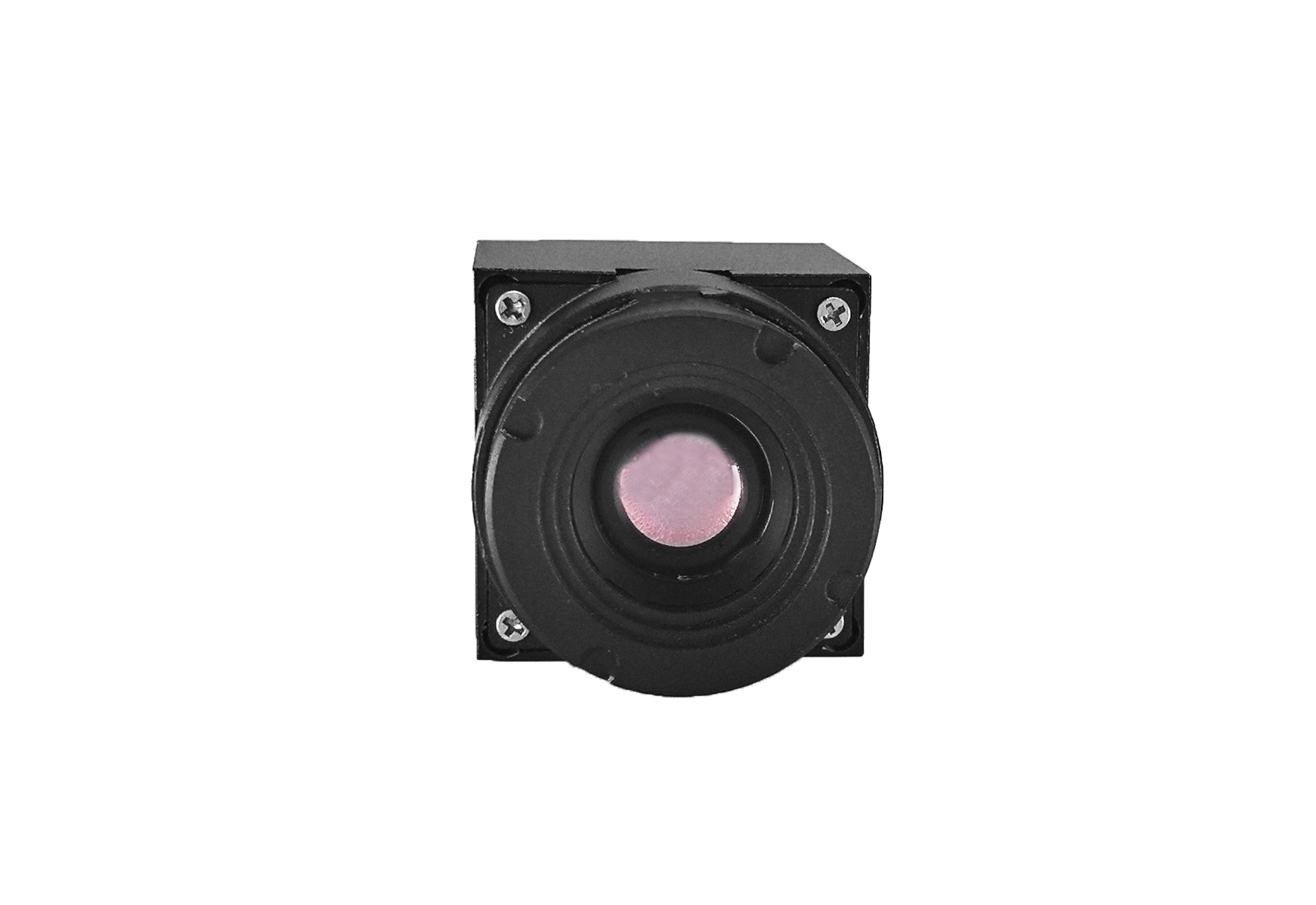

The AC640-9 is a high-performance uncooled thermal imaging module built for seamless system integration. It delivers clear thermal imagery in darkness, fog, or low light, ideal for professional monitoring and detection.

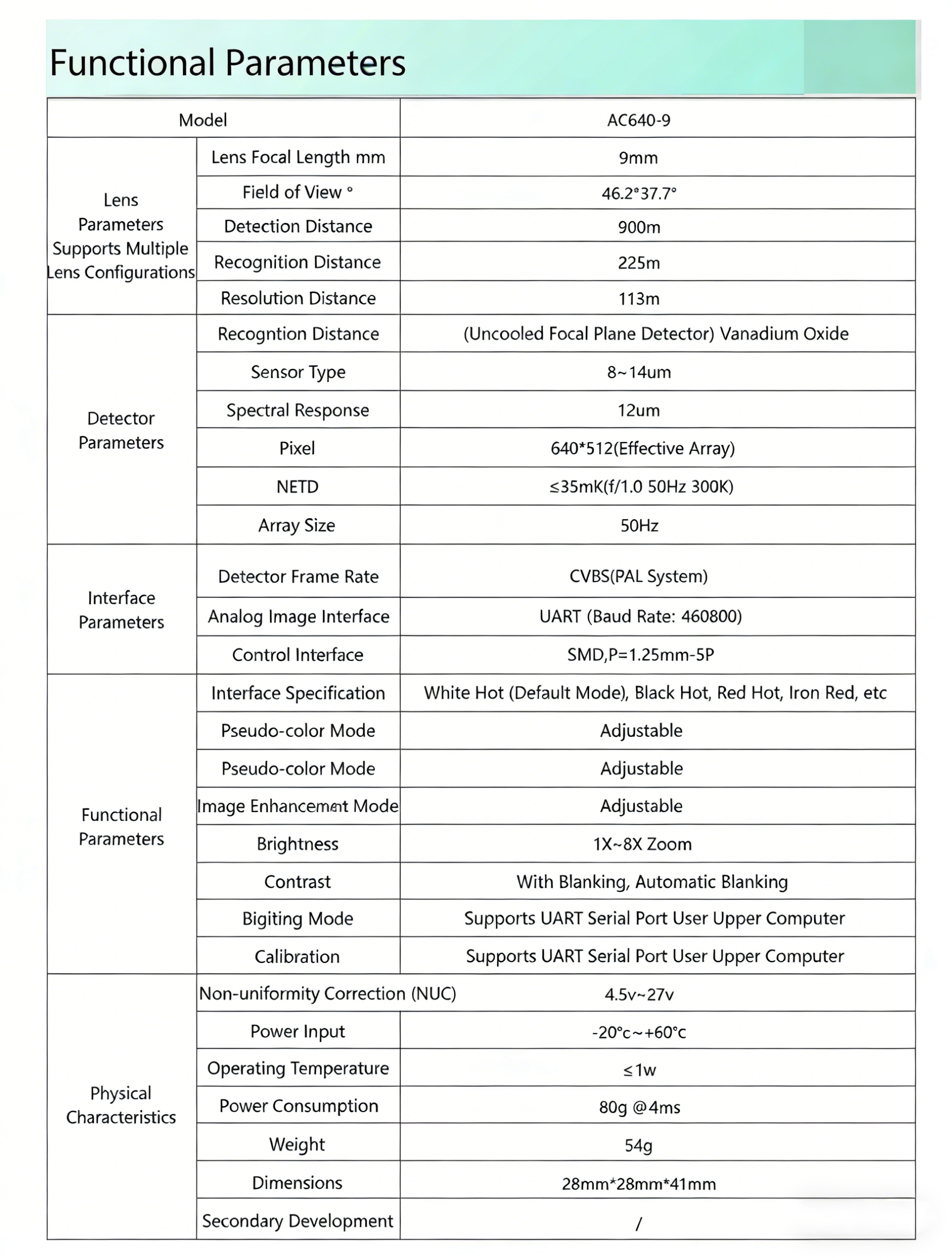

Key Features
- 640×512 Resolution: Sharp, detailed thermal imaging for precise target identification
- 9mm Lens: 46.2°×37.7° FOV, detection range up to 900m
- 50Hz Refresh Rate: Smooth real-time video, no motion blur
- NETD ≤35mK: Ultra-high sensitivity to detect subtle temperature differences
- Flexible Controls: 1X–8X zoom, multiple pseudo-color modes, adjustable brightness/contrast

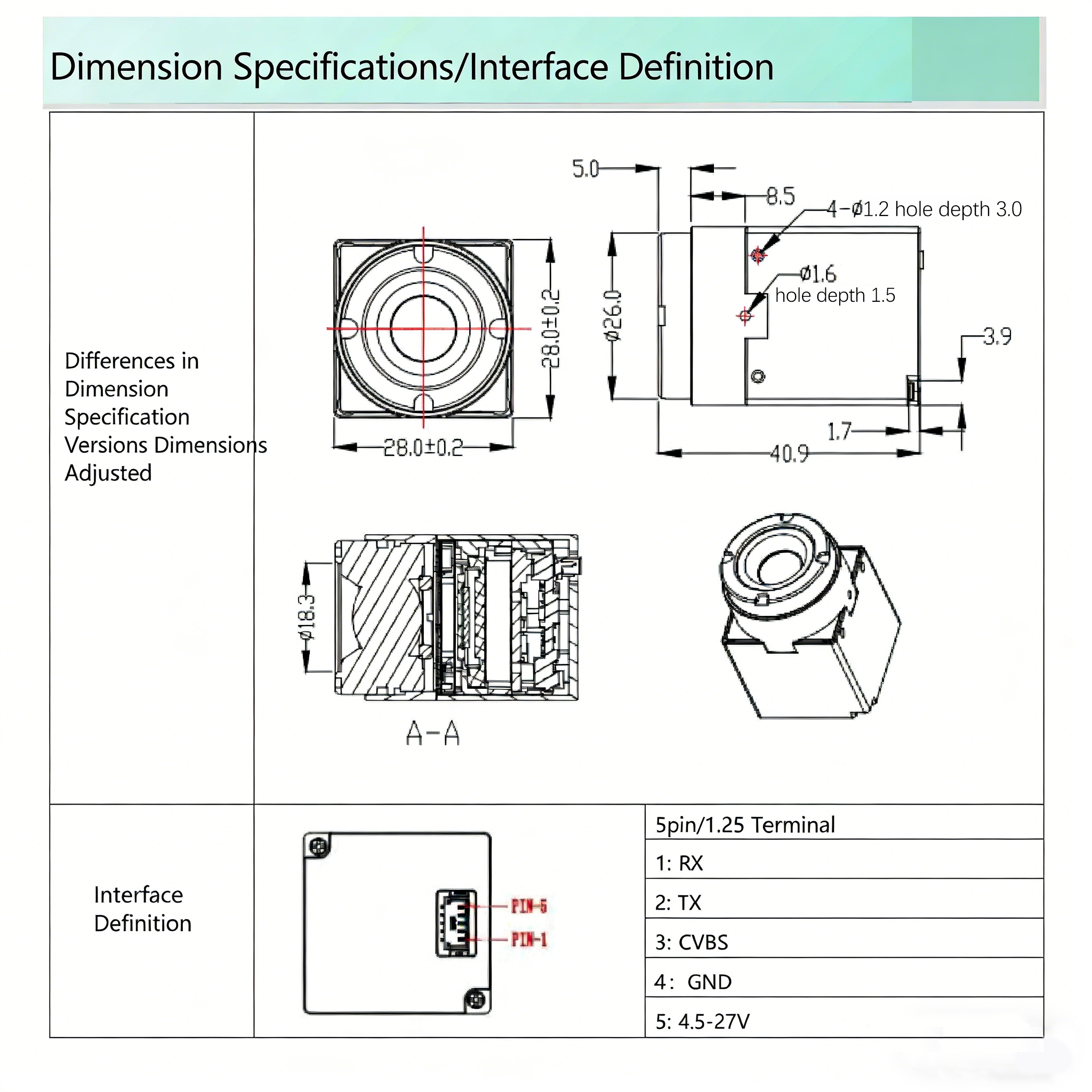

- Dual Interface: CVBS video output + UART (460800 baud) control

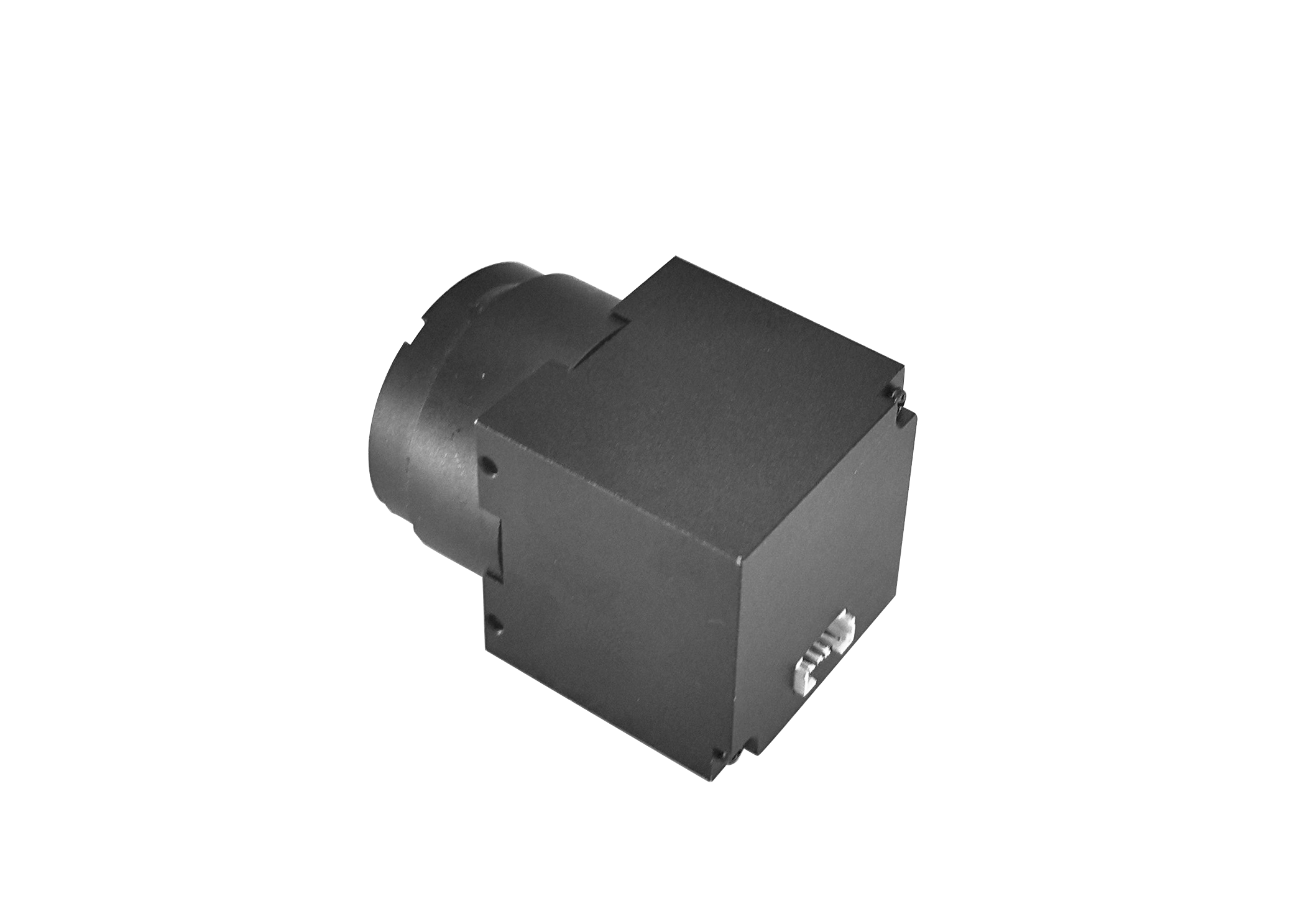

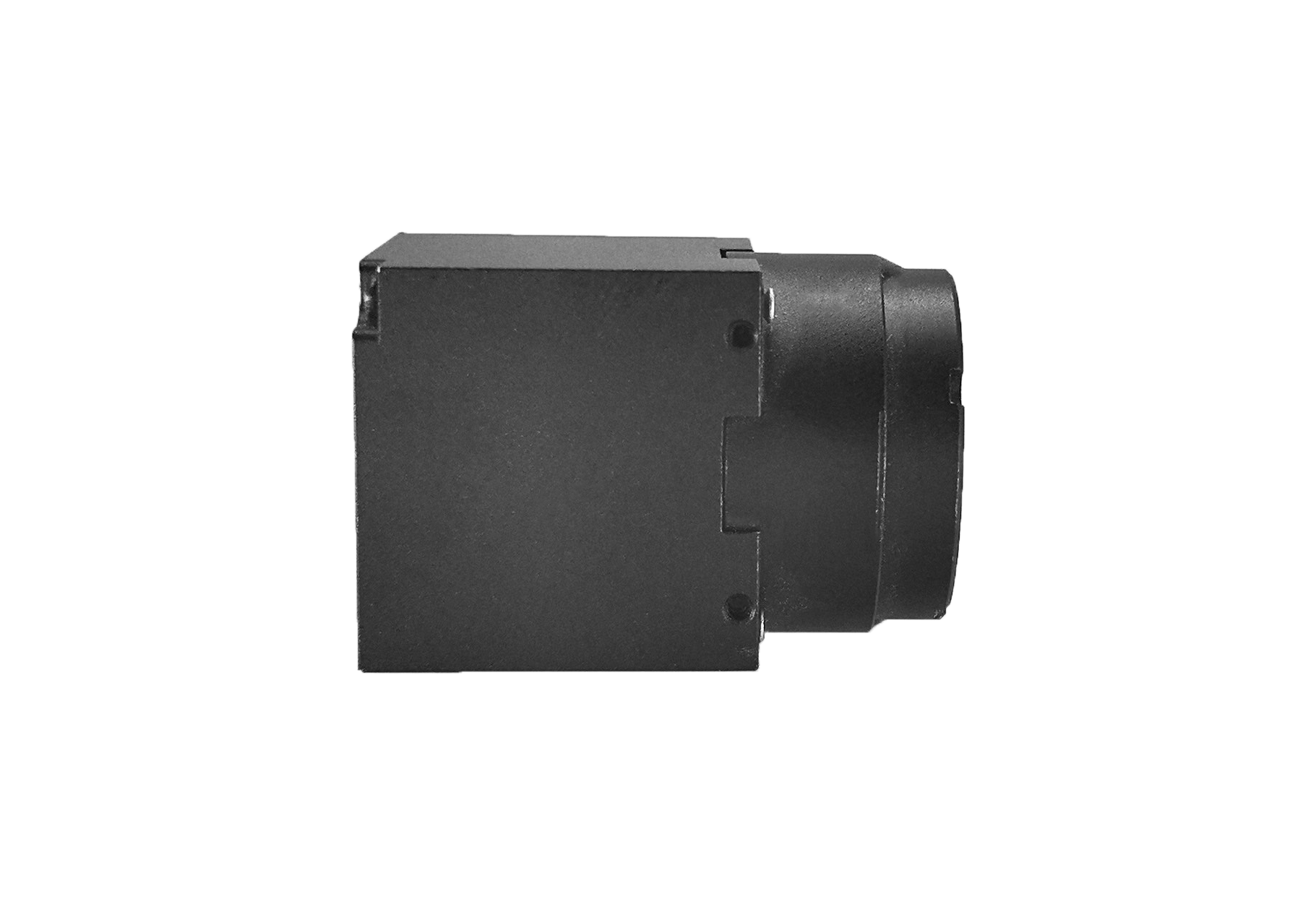

- Compact & Efficient: 28×28×41mm, 54g, 4.5–27V input, ≤1W power consumption
Ideal Applications
- Security monitoring & perimeter protection
- Power line & electrical fault inspection
- Industrial temperature detection & equipment diagnosis
- Search & rescue in low-visibility conditions
- Outdoor wildlife observation
Why Choose AC640-9
Professional thermal performance in an ultra-compact, low-power package. Perfect for security systems, industrial IoT, and portable detection devices.
